DESCRIPTION
Stratus SAE-P48C G3 4 Post 8,000 LBS Capacity Manual Release Compact Storage Parking Car Lift With Casters
Unleash your garage's capabilities with the 3rd Generation of the Stratus 4 Post Compact 8,000 lbs capacity parking car lift. Thoughtfully designed to be compact, this impressive four-post parking lift delivers robust power in a sleek and space-saving design. Its manual safety release mechanism ensures utmost safety while handling your hefty items. The Stratus SAE-P48C-G3 model also comes with sturdy castors, offering ease of mobility. All these combined give you a remarkable, versatile, compact storage solution, ready to facelift your garage!
-
FEATURES + BENEFITS
- Space-saving compact design
- Hands-free lock release latch system
- Relocatable Power Unit
- Cable Failure Protection -Second safety device will be automatically locked while primary safety locks are out of operation.
- Multi-level locking positions (9 locking positions)
- Manual Safety Lock Release
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein Orange (RAL 2004)
Includes
- Rolling Jack Tray
- Castor Kit (Set of 4)
- Drip Trays (3 pcs)
-

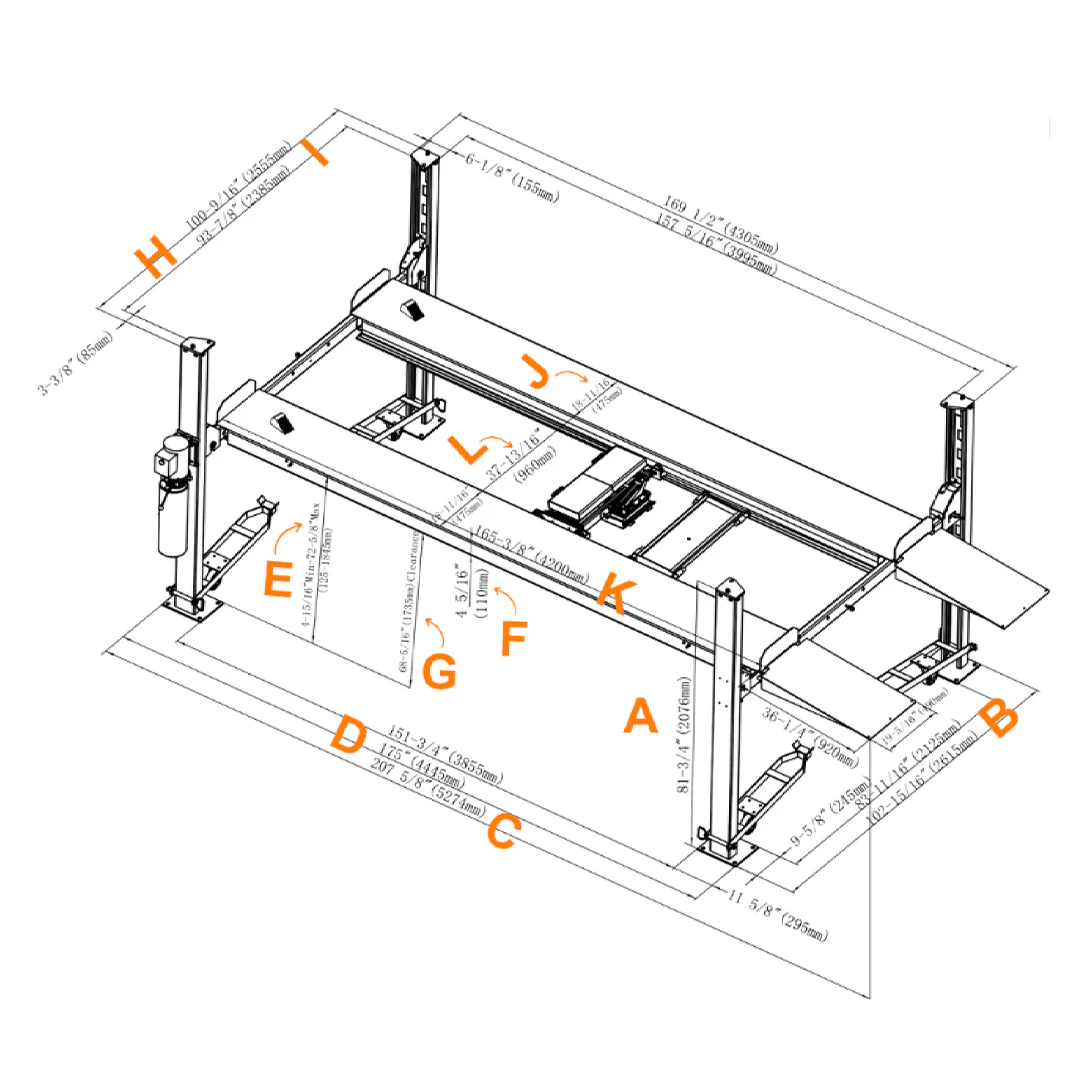

SPECIFICATIONS
Model P48C Capacity 8,000 lbs Overall Height 81 3/4"(2076mm)
Overall Width 102 15/16" (2615mm)
Overall Length with Ramps
207 5/8" (5274mm)
Overall Length without Ramps
175" (4445mm)
Max Lifting Height
72 5/8" (1845mm)
Min Lifting Height
4 15/16" (125mm)
Clearance Height
68 5/16" (1735mm)
Lifting Time
~ 50 sec
Width Outside Columns
100 9/16" (2555mm)
Width Inside Columns
93 7/8" (2385mm) Runway Width 18 11/16" (475mm) Runway Length 165 3/8" (4200mm)
Width Between Runways 37 13/16" (960mm) Motor 3 HP, 1100V, 60 HZ, 1PH Oil AW32 or AW46 / ~ 2.5 gal Breaker 30A Weight 1728 lbs Dimensions 168"L x 23"W x 30"H -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
