The Story
-
DESCRIPTION
Stratus SAE-P49D 4 Post 9,000 LBS Capacity Manual Release Double Parking Car Lift (Caster Kit Sold Separately)
Say hello to a more efficient garage with the Stratus 4 Post 9,000 lbs Capacity Manual Release Double Parking Car Lift. Capable of shouldering a whopping 9,000 lbs, this 4-post double car storage lift is all about robustness. With its manual safety release, you'll always have complete control over your car's positioning. But the best part? It doubles as a parking lift, maximizing space in your garage. Get your hands on this fantastic gadget today!
-
FEATURES + BENEFITS

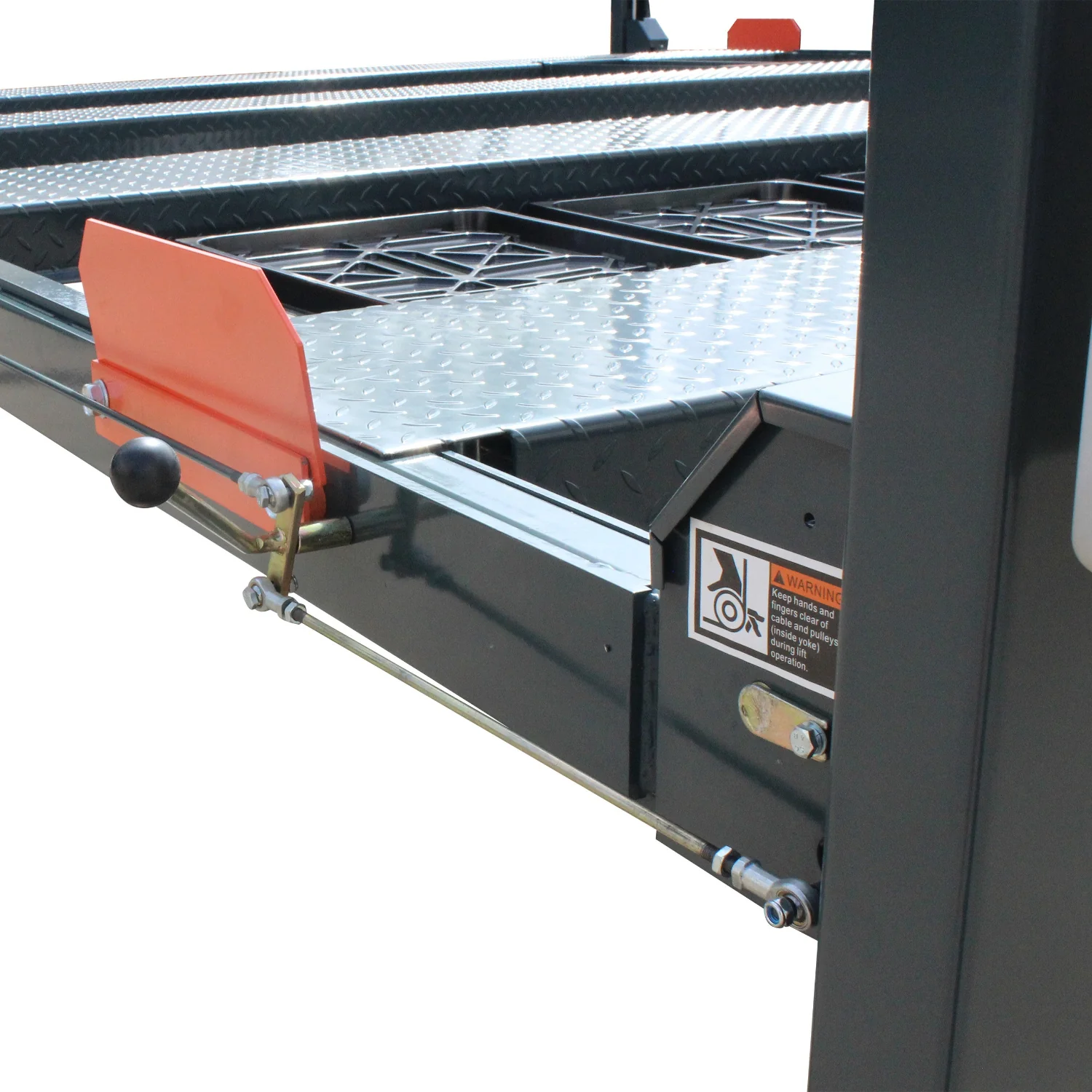

- Single-point manual safety lock release
- Mechanic locks automatically engage to lock position in ascending processing.
- Imbalance protection, safe and reliable

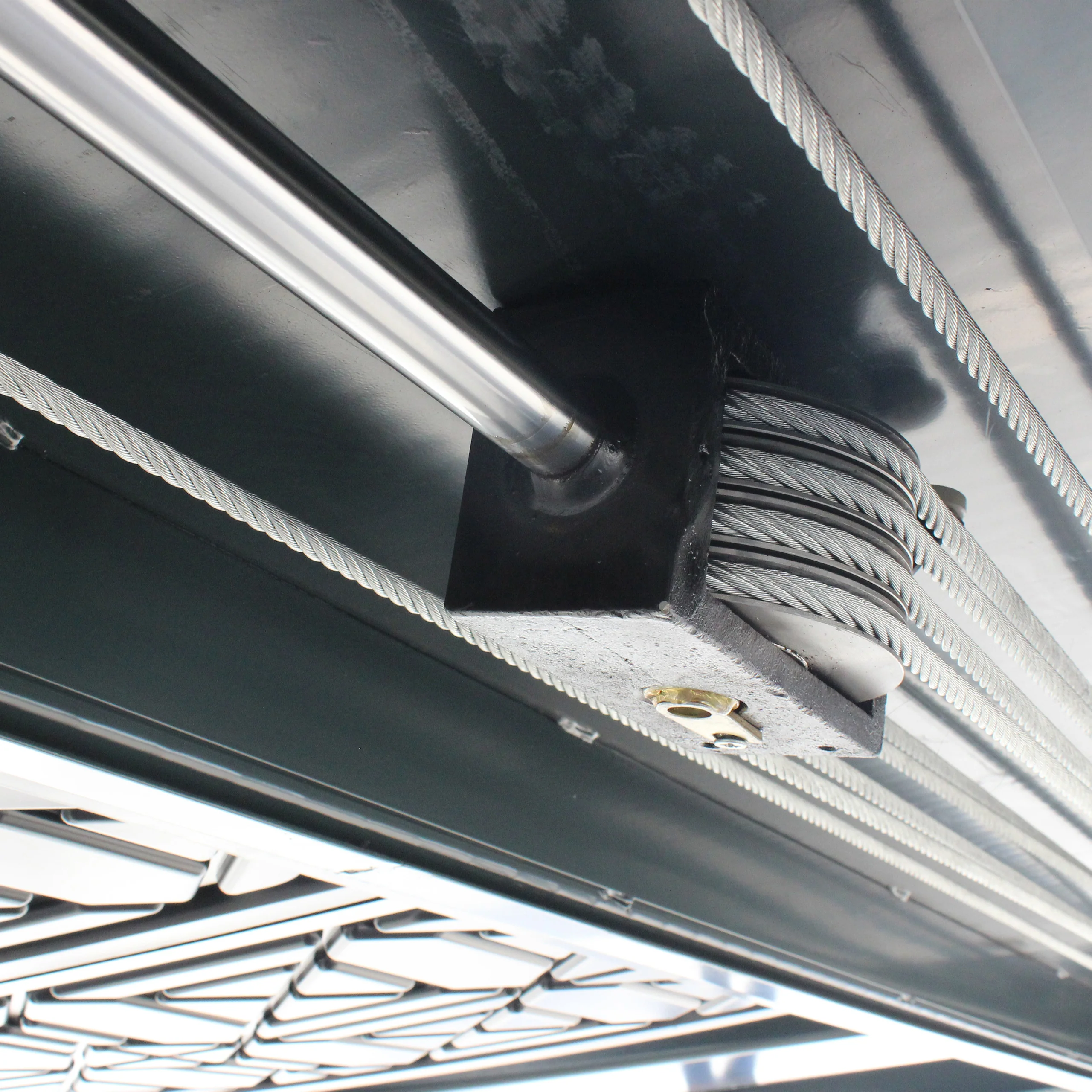

- Self-lubricating pulleys and pre-tensioned cable
- Skid-proof diamond platform
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004)
Standard Accessories Include
- 2 pcs ramps
- 4-wheel stops

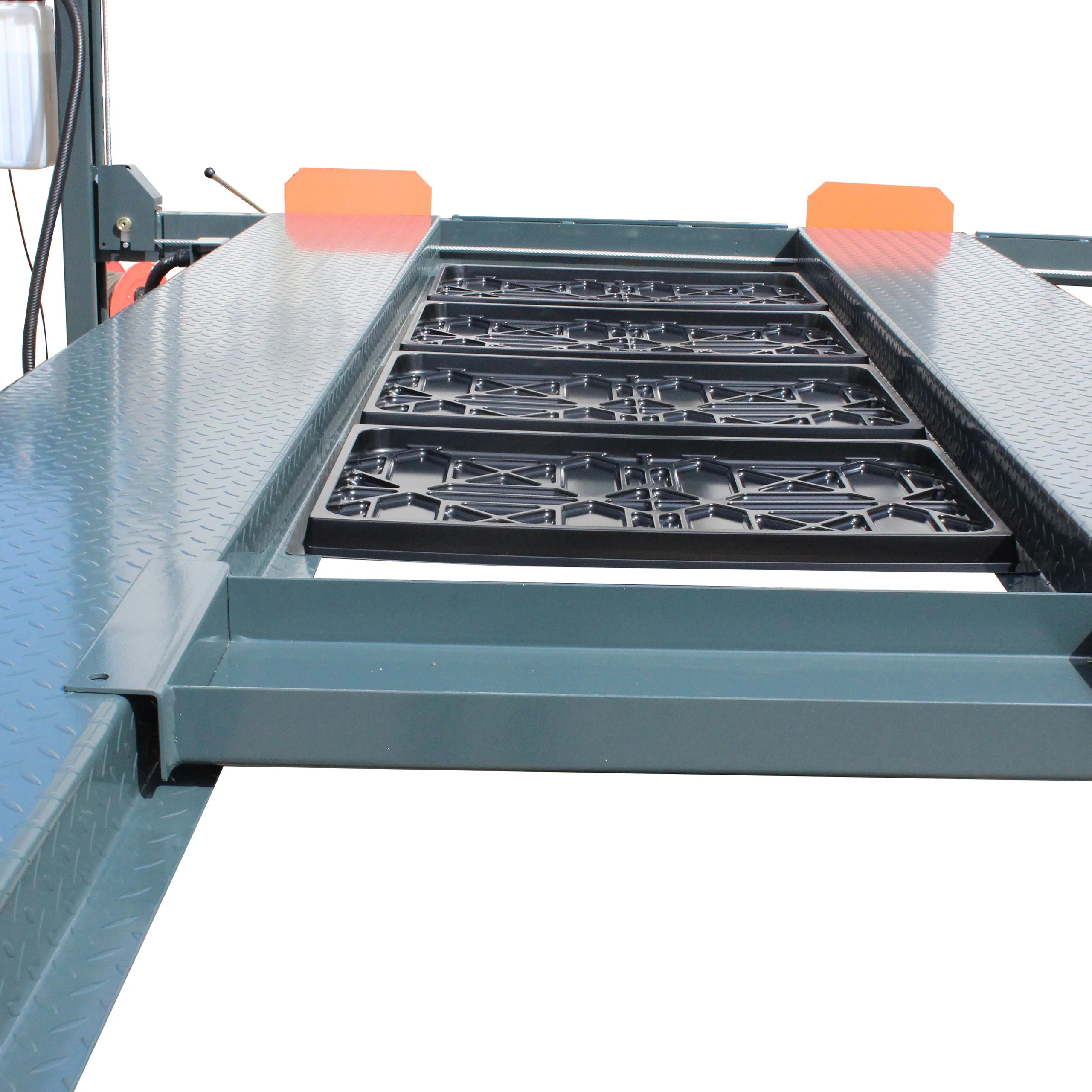

- 8 drip trays
- 2 jack trays
Optional Accessories

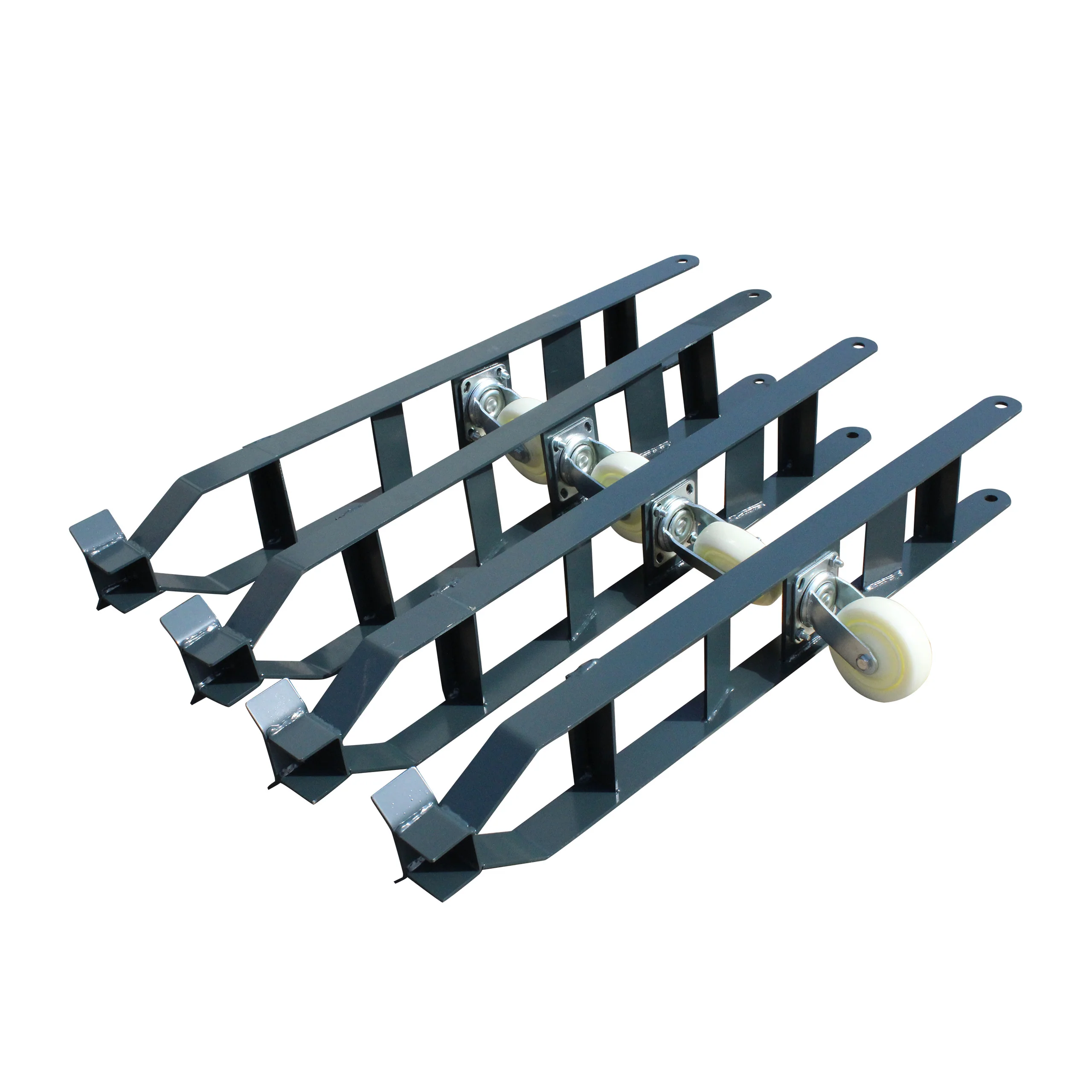

- Mobile Kit
- Sliding bridge jack
- Aluminum ramps
-
SPECIFICATIONS
Model P49D Capacity 9,000 lbs Min Lifting Height 5 7/8" (150mm)
Max Lifting Height 86 5/8" (2200mm)
Lifting Time
~ 55 sec
Clearance Height
80 3/4" (2052mm)
Overall Height
97 1/2" (2476mm)
Overall Width
233 15/16" (2942mm)
Overall Length with ramps
207 3/4" (5277mm)
Overall Length without ramps
175" (4445mm)
Shipping Weight
2600 pounds
Shipping Size
153"L x 30"W x 38"H Width Between Columns 225 3/16" (5720mm) Drive Thru 75 1/16" (1906mm per side)
Runway Width 18 11/16" (475mm) Between Length 165 3/8" (4200mm) Between Runways 37 11/16" (958mm) Motor 4 HP, 1100V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Weight 3931 lbs Dimensions 232"L x 22"W x 50"H -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
