DESCRIPTION

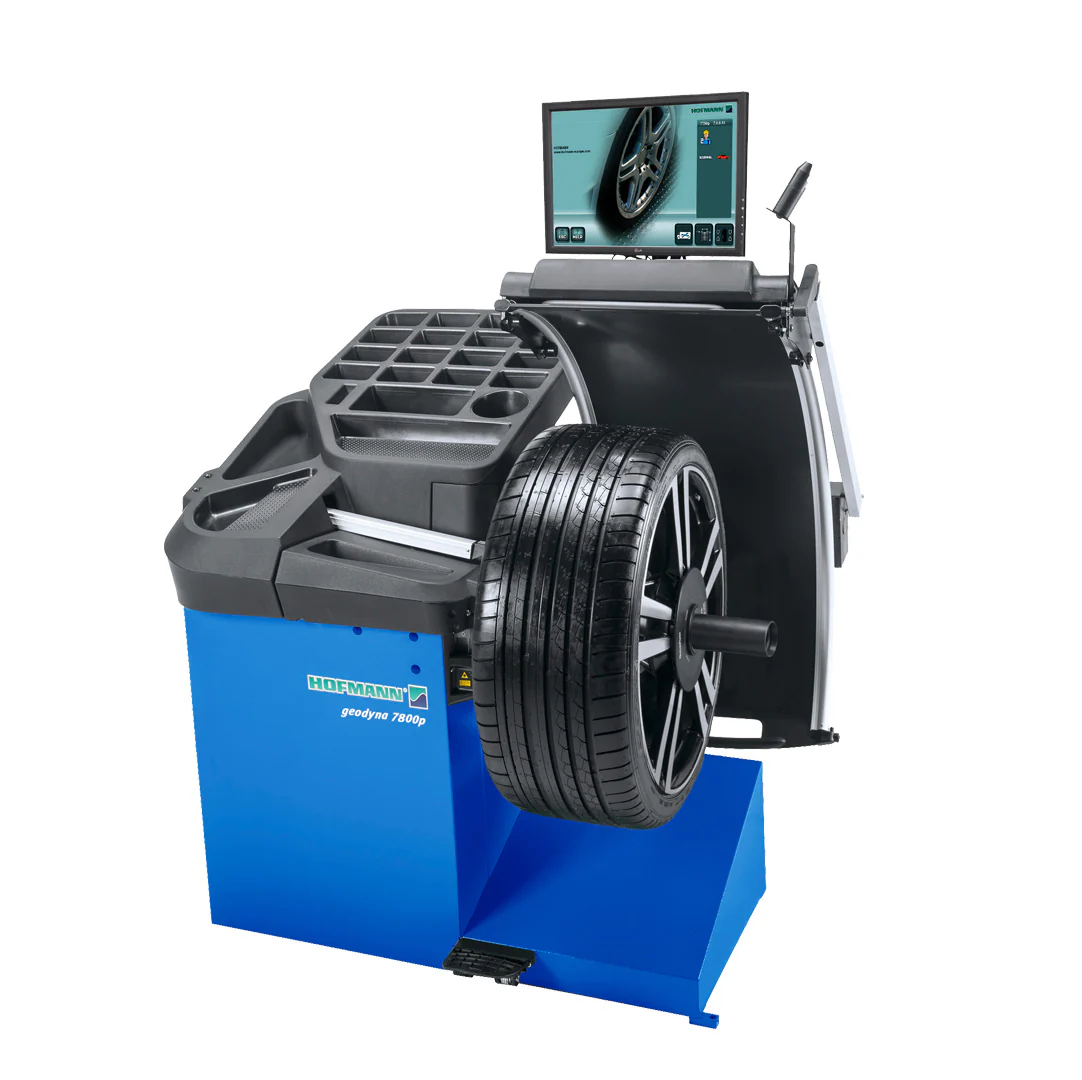

Hofmann Wheel Balancer with Touchscreen Monitor and Non-Contact Data Entry is the wheel balancer for garages, car dealerships, tire shops, and premium workshops with high tire service volume. With touch screen monitor, automatic non-contact data entry, and easyWEIGHT™ pinpoint indicator light - an accurate, fast, and easy solution to position adhesive weights on the wheel.
- Part Number: EEWB753BEB
- Poductivity Enhancing Features
- Automatic data entry and selection of balancing mode via scanner and Smart Sonar
- Automatic spoke detection - automatically detects the number and position of rim spokes.
- One-spin balance
- VPM measurement technique for uncompromised accuracy
- Intuitive, Ergonomic Design
- Platinum touchscreen user interface: new resistive touch display with large icons for use with or without gloves on
- Fast and intuitive selection of the cycle modes: fully automatic with spoke detection, fast automatic without spoke detection, and manual mode
- Patented ergonomic telescopic wheel guard reduces the overall equipment footprint
- geodata - The geodyna 7800p is equipped with the geodata arm.
- VPM Measurement Technique - The geodyna 7800p comes with the patented virtual plane measurement (VPM) technique which ensures accurate balancing results while being insensitive to ambient conditions.
- easyWEIGHT - Pinpoint indicator light is the accurate, fast, and easy solution
- Power Clamp - The electromechanical power clamp
- EZ-Collets - Mobile app helps service technicians identify the best tools for their wheel balancing jobs.
- The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.
- Additional Features
- The patented wheel scanner detects wheel diameter and offsets and the number and position of wheel spokes.
- The 225mm long shaft allows the use of accessories with every type of wheel.
- The operator only has to touch the amount of unbalance on the screen, and the tire is automatically indexed to the correct position.
FEATURES
- EZ-COLLETS MOBILE APP: The EZ-Collets mobile app makes wheel balancing more efficient.
- AUTOMATIC SPOKE DETECTION: Scanner automatically detects number and position of rim spokes. Provides easy recall of split weight mode for hidden adhesive weights by simply pressing an icon on the screen.
- ASANETWORK: A tool that allows equipment to be connected to a garage. W
- RIM LIGHTING: Facilitates application of the geodata gauge arm.
- SMART SONAR™: Automatic, non-contact rim width acquisition delivers greater accuracy and ease of use for a 30% savings in the complete process when compared to manual operation.
- STOP IN POSITION: Touch the screen to automatically rotate the wheel to weight application position.
- POWER CLAMP™: Patented automatic Power Clamp electromechanical clamps the wheel accurately with a constant force, reducing the opportunity for chasing weight.
- EASYWEIGHT™: Pinpoint laser identifies exact weight placement location for increased accuracy and efficiency.
- EASYALU™: Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.
- SPLIT WEIGHT MODE: Hides adhesive weights behind two adjacent spokes so they cannot be seen from the outside.
- QUICKBAL™: 30% reduced cycle time, less than 4,5 seconds, maintaining the same high accuracy.
- OVERSIZED SHAFT: The 225 mm length allows the use of stud-hole flanges and other accessories for almost every type of rim.
- VPM TECHNIQUE: Measurement system for high precision and repeatability.

SPECIFICATIONS

Specifications	GEODYNA7800P
Wheel clamping	Power clamp
Diameter of shaft	40 mm
Measuring speed	< 200 rpm
Balancing accuracy	0.035 (1 g)
Angular resolution	±0.35°
Length of shaft	225 mm
Start/Stop balance time - Check spin (Wheel 195/65R15)	4.5 s s
Manual rim diameter range	8" - 32"
Manual offset range	1" - 20"
Manual rim width range	1" - 20"
Semi-automatic rim diameter range	8" - 30"
Semi-automatic rim width range	1" - 20"
Automatic rim diameter range	14" - 26"
Automatic offset range	4.7" - 16.3"
Automatic rim width range	3" - 15.8"
Max. wheel diameter	42"
Max. wheel weight	154 lbs ( 70 kg)
Motorized	Yes
Power Requirements	230 VAC 1ph 50/60 Hz – 1.1A
Dimensions LxWxH (Unit only)	54" x 40" x 73"
Net Weight	297 lbs (135 kg)

WARRANTY + MANUALS
- 5 Years Motor
- 2 Year Parts
- 1 Year Labor
GEODYNA® 7800P

WHEEL BALANCER SELECTOR

DESCRIPTION

FEATURES

SPECIFICATIONS

WARRANTY + MANUALS

GEODYNA® 7800P

WHEEL BALANCER SELECTOR

Wheel Service

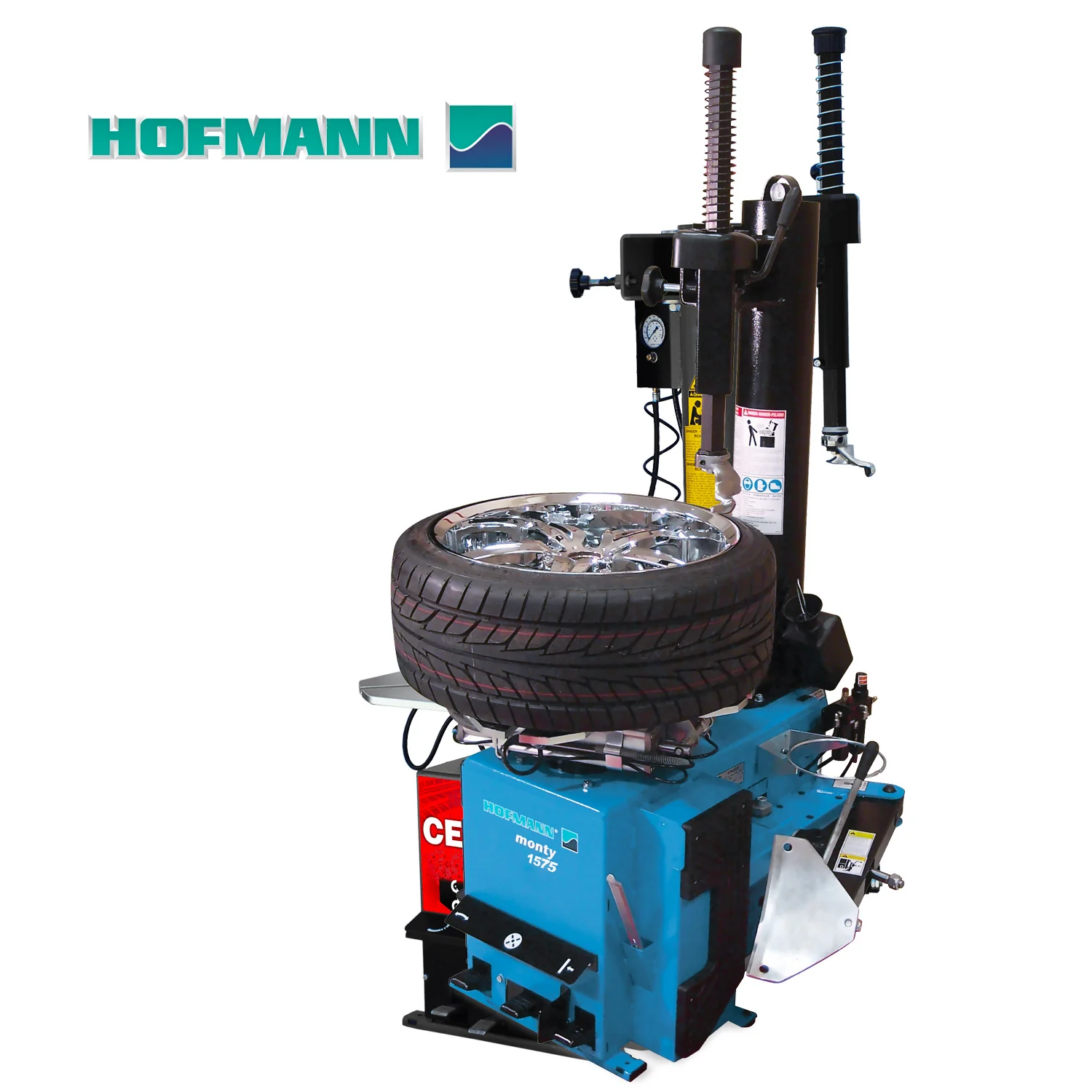

Hofmann Swing Arm Tire Changer #MONTY1575B

Hofmann GEODYNA® 7800P Wheel Balancer with Touchscreen Monitor #EEWB753BEB

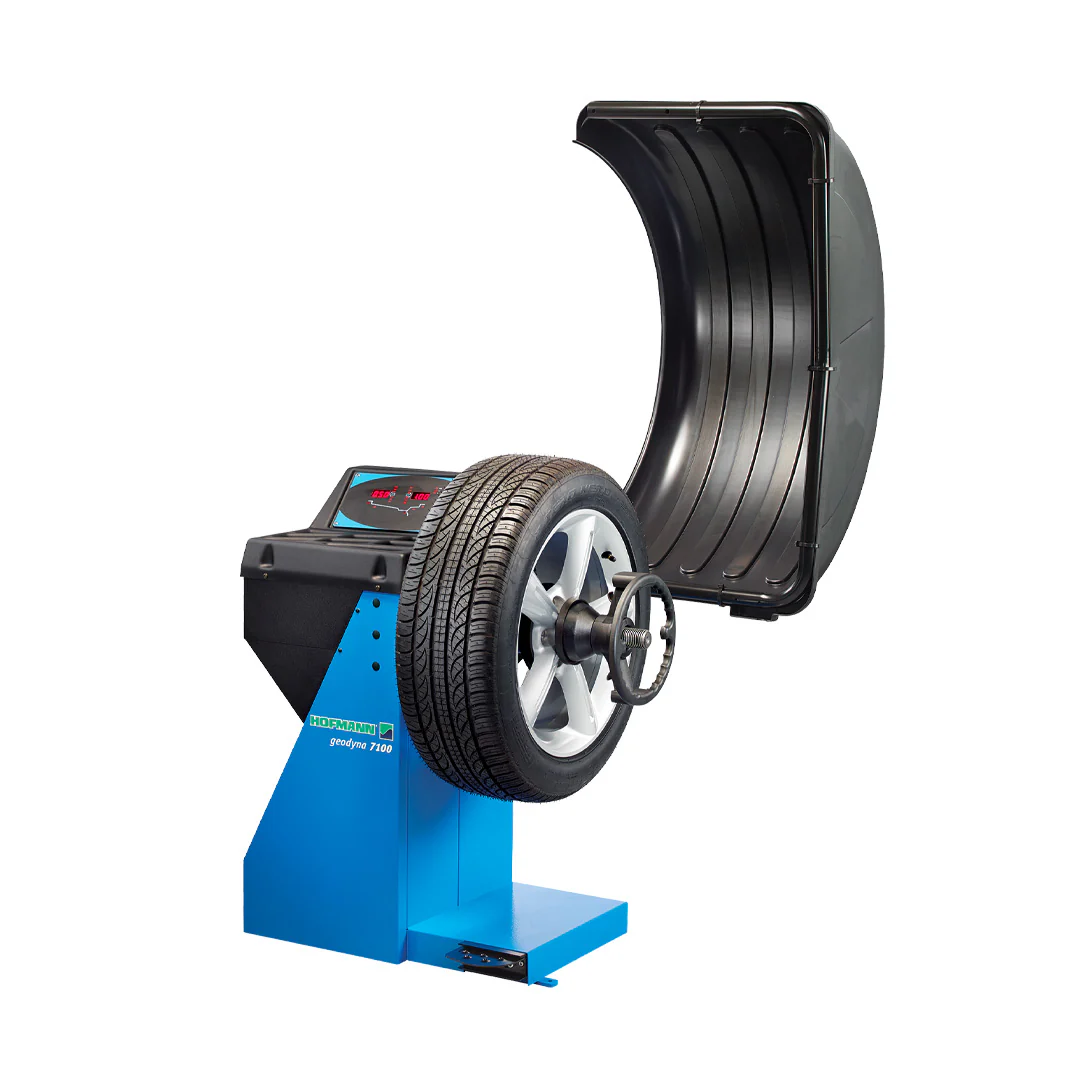

Hofmann GEODYNA® 7100 Wheel Balancer with Digital Display #EEWB761AE1
