DESCRIPTION
Stratus SAE-P49C Compact Enclosed 4 Post 9,000 LBS Capacity Manual Release Storage Parking Car Lift With Casters
Upgrade your garage with the space-saving and versatile Stratus Auto Equipment Compact 4 Post Car Lift for Garages! Engineered with a remarkable 9,000 lbs capacity, this car lift is capable of handling a wide range of vehicles, from small sedans to larger SUVs. The manual release mechanism ensures simple and safe operation, while the built-in castors provide effortless mobility, allowing you to conveniently position the lift wherever required. Maximize your storage capacity and transform your workspace with the Stratus Auto Equipment Compact Enclosed 4 Post Car Lift With Castors!
-
FEATURES + BENEFITS
- 9,000 LBS lifting capacity.
- Manual single-point safety lock release.
- Mechanical locks automatically engage in position in an ascending process.
- Out-of-level protection is safe and reliable.

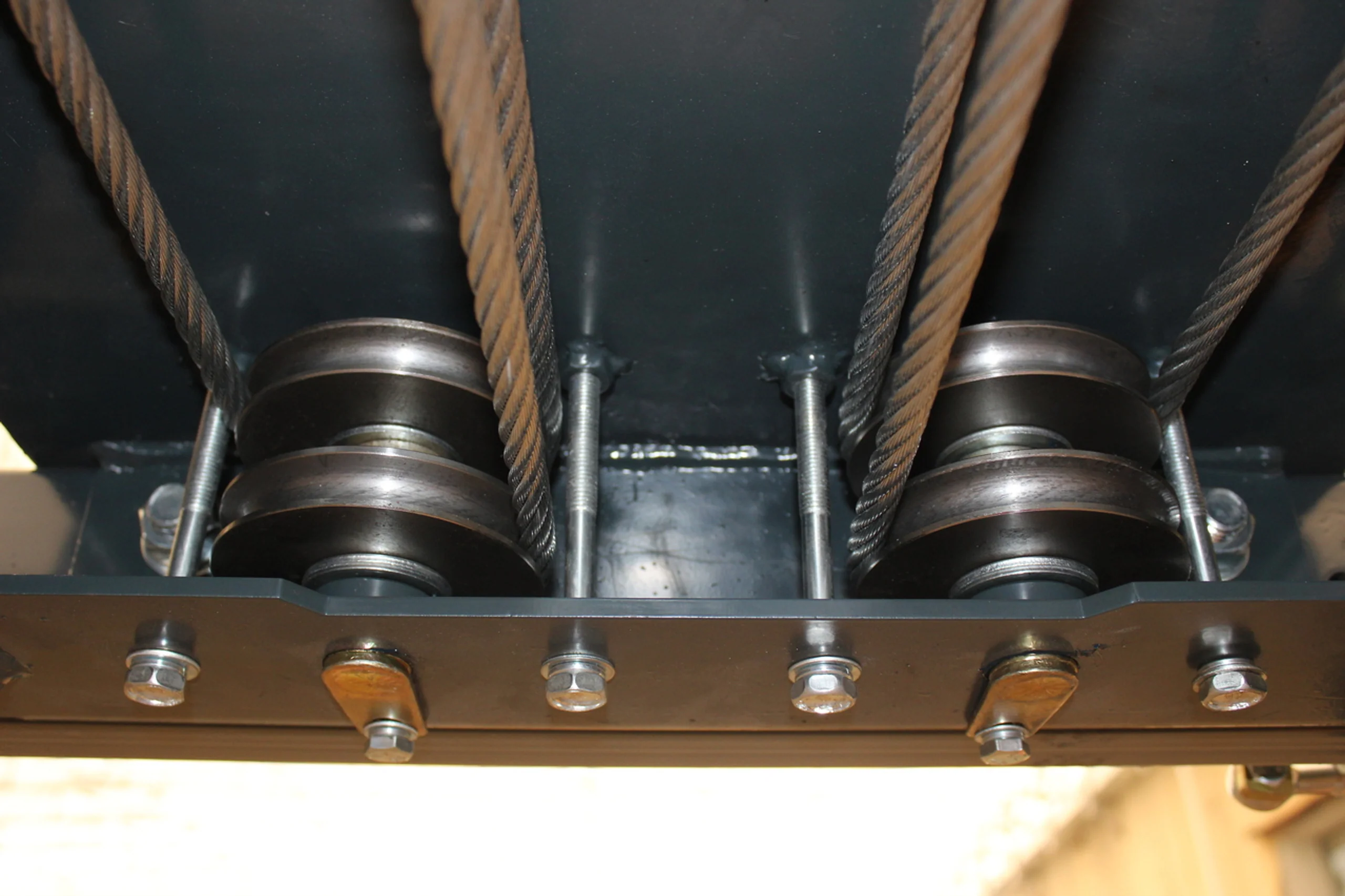

- Self-lubricating pulleys and pre-tensioned wire rope for extended service life.
- Skid-proof diamond platform.
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
Standard Accessories Include

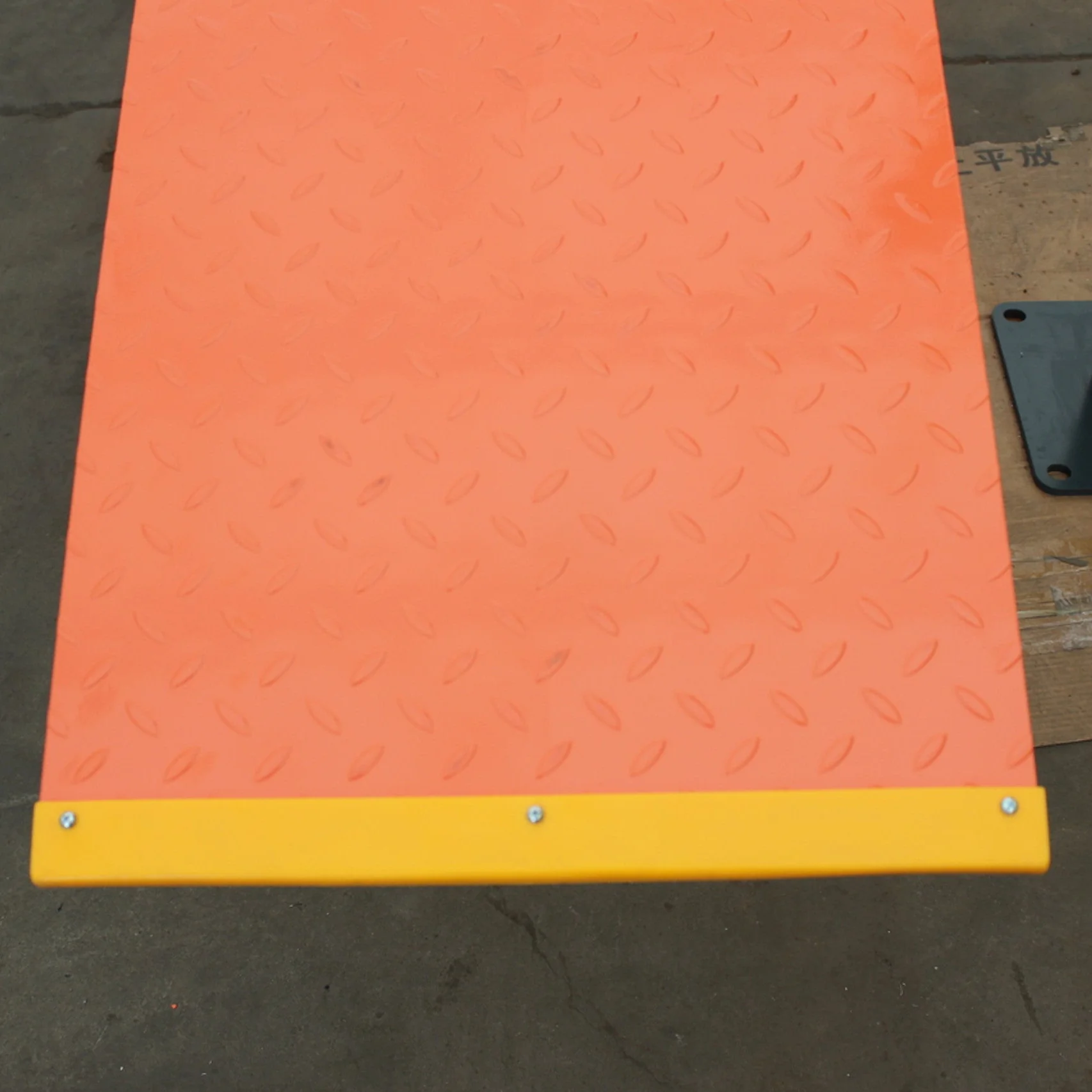

- 2pcs ramps
- 2-wheel stops

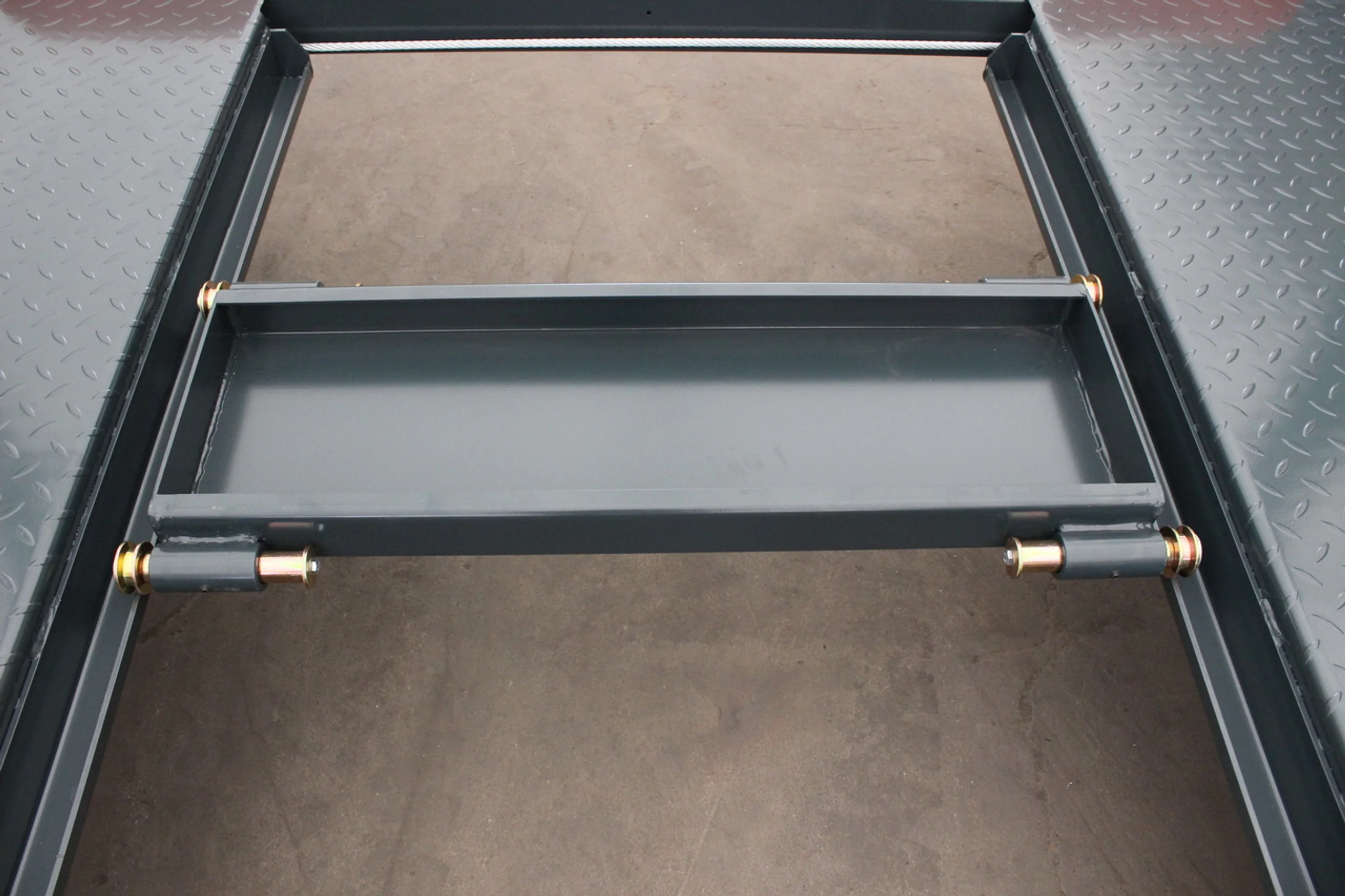

- 4-drip trays
- 4-castor kits
- 2-wheel chocks
Optional Accessories
- Rolling bridge jack
- Aluminum ramps
-
SPECIFICATIONS
Model P49C Capacity 9,000 lbs Min Lifting Height 5" (127mm)
Max Lifting Height 73 11/16" (1872mm)
Lifting Time
~ 45 sec
Clearance Height
69 3/8" (1763mm)
Overall Height
97 1/2" (2476mm)
Overall Width
109 5/8" (2784mm)
Overall Length with ramps
208" (5283mm)
Overall Length without ramps
176 11/16" (4488mm)
Shipping Weight
2600 pounds
Shipping Size
153"L x 30"W x 38"H Width Between Columns 94 13/16" (2409mm) Drive Thru 86" (2184mm)

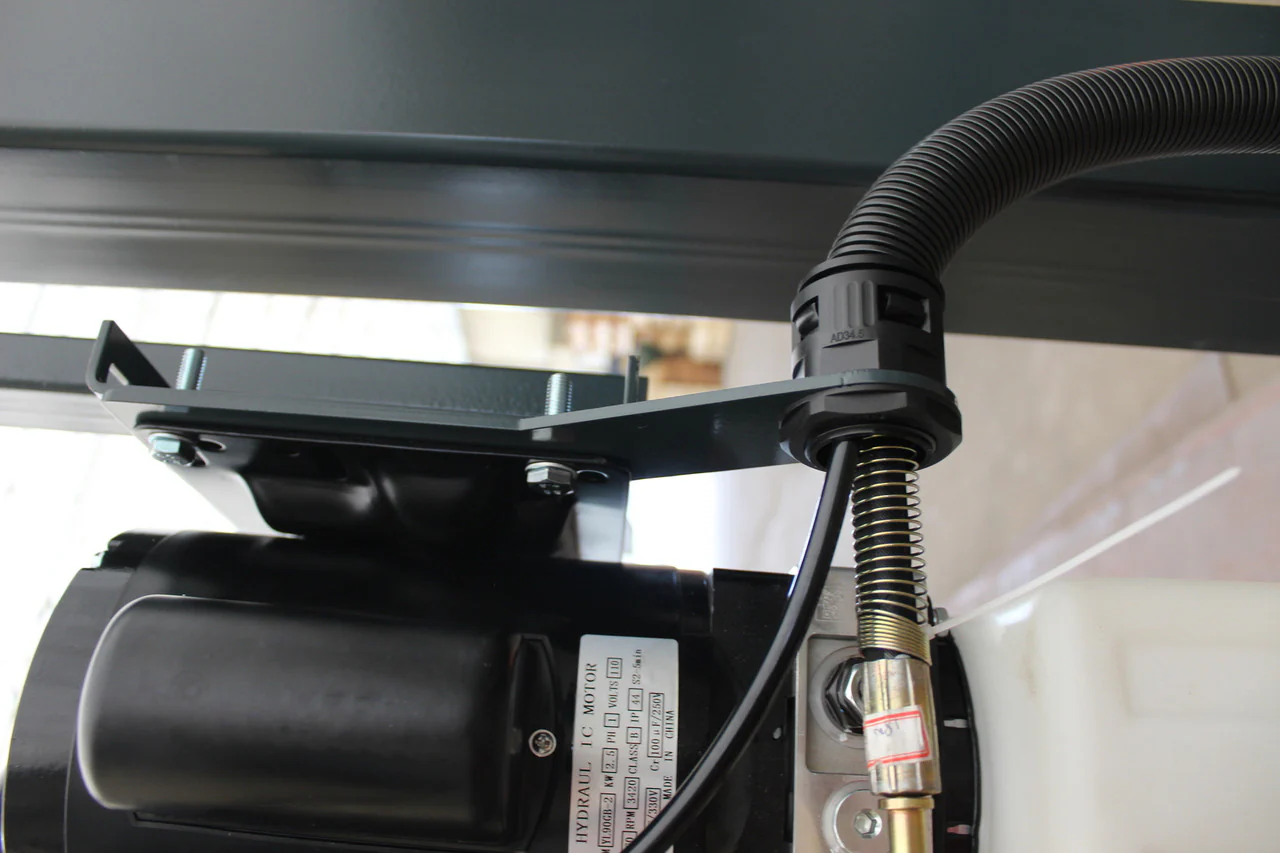

Width Between Runways 37 13/16" (960mm) Runway Width 18 11/16" (475mm) Between Length 165 3/8" (4200mm) Between Runways 37" (940mm) Motor 3 HP, 1100V, 60 HZ, 1PH Oil AW32 or AW46 / ~ 2.5 gal Breaker 20A Weight 1797 lbs Dimensions 168"L x 23"W x 30"H -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
