APlusLift 8000LB 4-Post Portable Parking Storage Service Car Lift #HW-8SXLT
-
DESCRIPTION
APlusLift 8000LB 4-Post Portable Parking Storage Service Car Lift - HW-8SXLT
APlusLift HW-8SXLT 4-post car lift (auto hoist) is a portable parking and storage lift with an 8,000 LB Capacity. The design of this lift model has been proven for 30 years. It is built with high-quality materials and workmanship and features a powder coating for superior corrosion resistance. This lift uses a revolutionary, highly efficient 110V 1.5HP hydraulic power unit for safer operation. The lift delivers the perfect solution for parking, storage, and service use by homeowners or restoration shops.
APlusLift HW-8SXLT 4-post car lift (auto hoist) package includes a caster kit with polyurethane wheels, a jack tray, three drip trays, two removable approach ramps and a power cord. The caster kit allows customers to move the lift around the garage easily and can be installed or removed in minutes. The jack tray allows customers to use a jack to lift one end of the vehicle. The drip trays prevent fluid from the top vehicle from dripping onto the bottom vehicle. Optional sliding jacks are available for purchase.
2 Post Lifts
- Industry leading 3 Year (36 Months) Warranty (a $499 value!)
- Drive Through Width 93" (HW-8S) and 99" (HW-8SXLT)
- HW-8S Model Overall Dimensions: 178"L x 106"W x 84"H

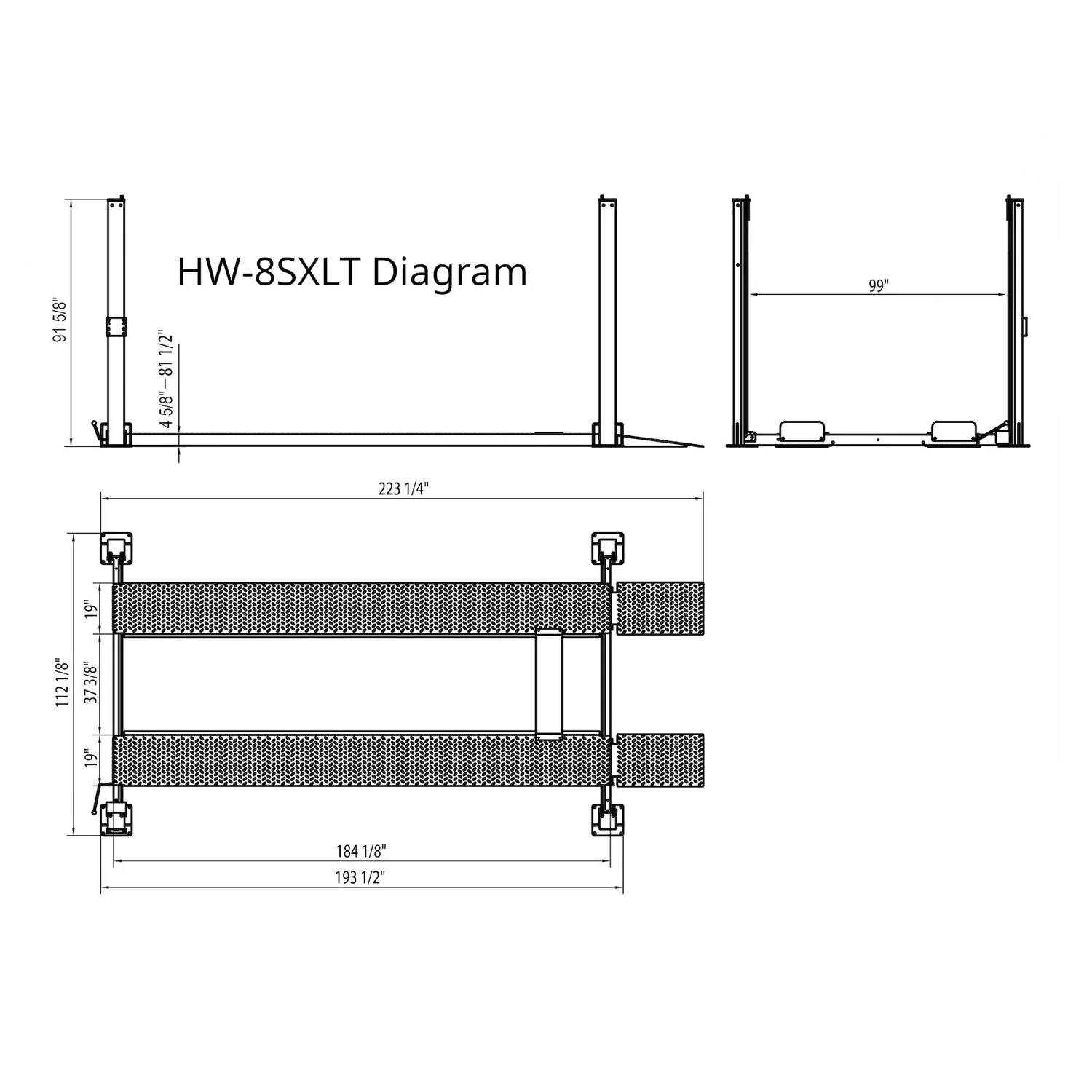

- HW-8SXLT Model Overall Dimensions: 193"L x 112"W x 91"H
- Free Caster Kit, Jack Tray, Drip Trays, Removable Approach Ramps, and Power cord
- CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
- Safer Operation with A Revolutionary High Efficient 110V 1.5HP Hydraulic Power Unit
- Powder Coated Finish with Superior Corrosion Resistance
Parts Included:

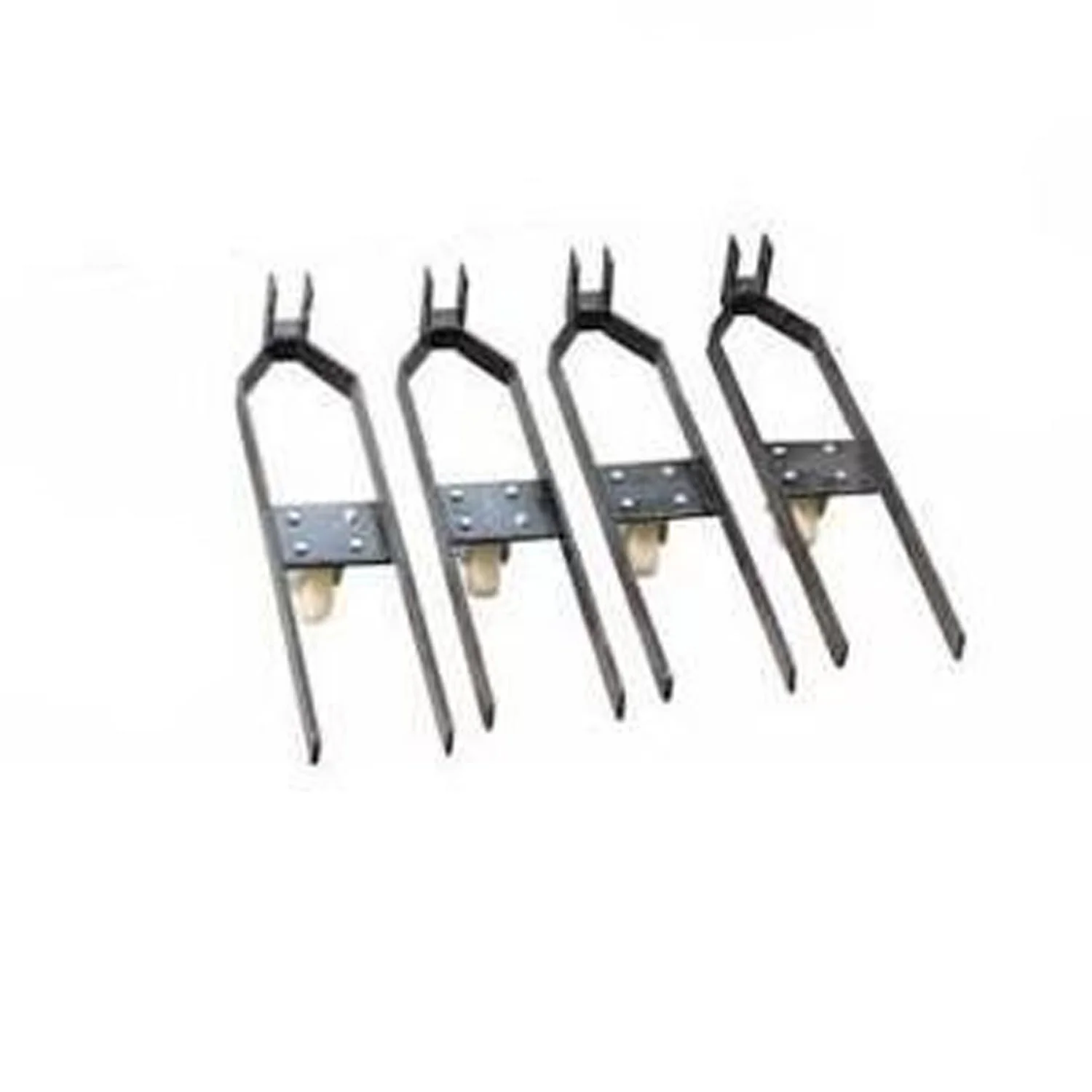

- Caster Kit
- Jack Tray

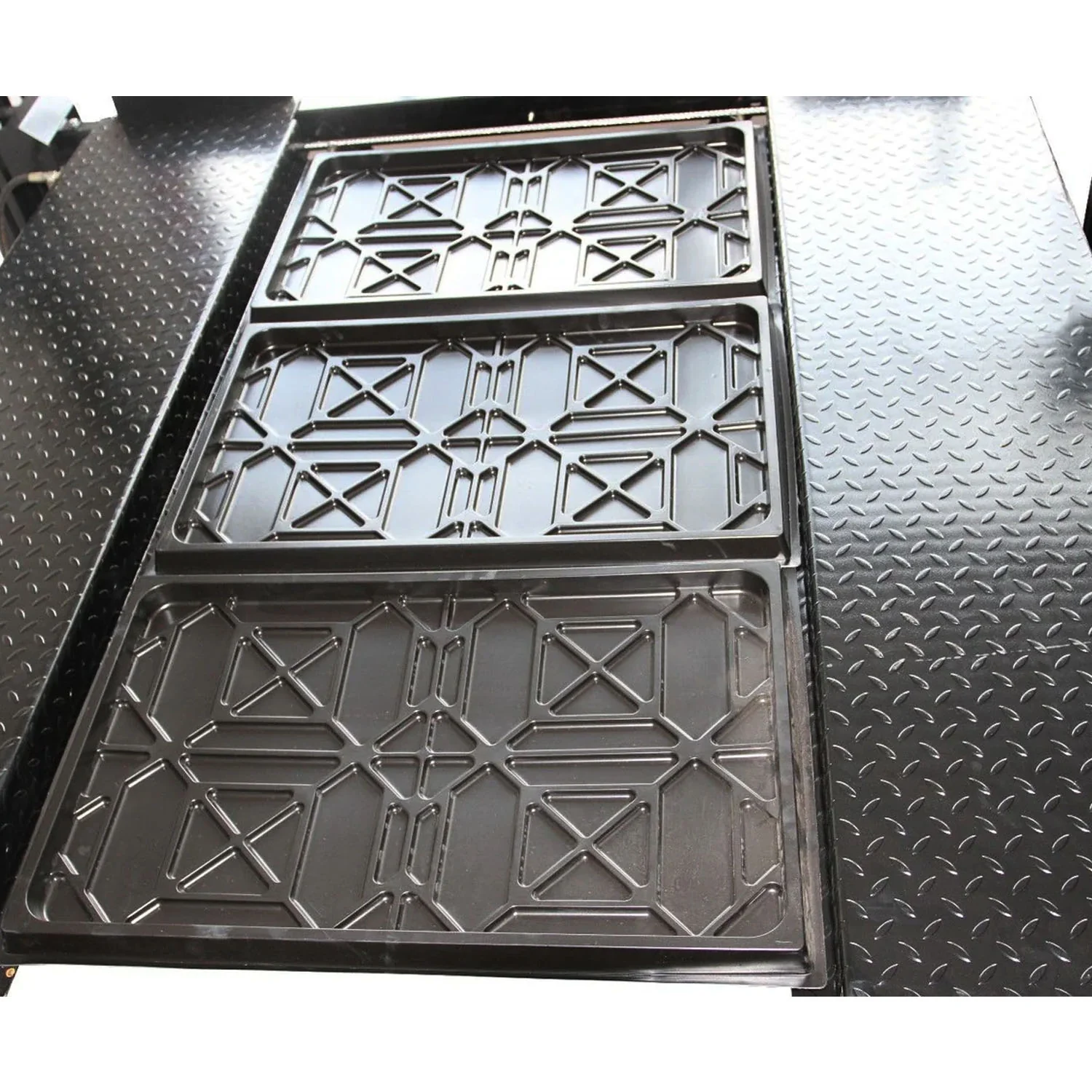

- 3 Drip Trays

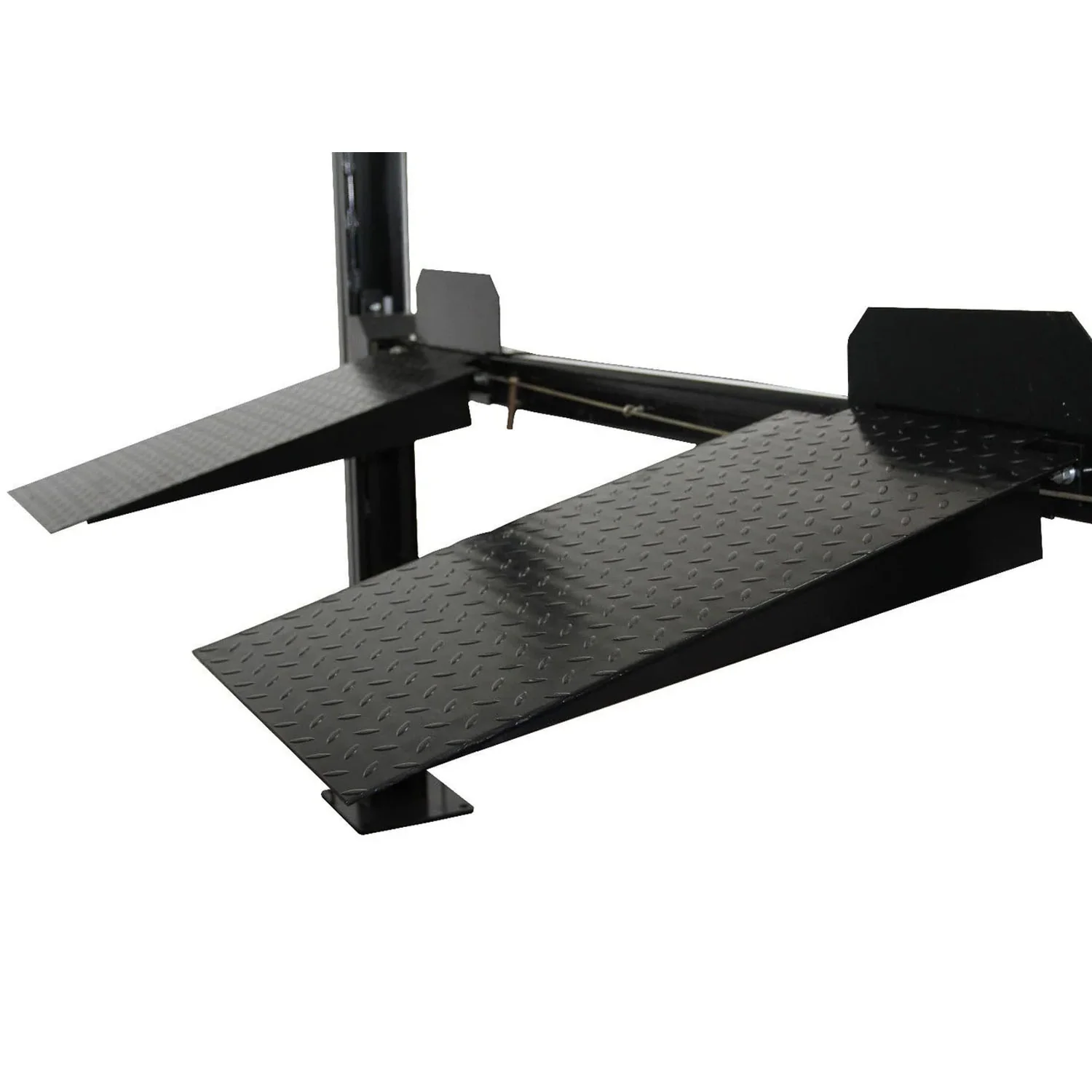

- 2 Removable Approach Ramps
-
FEATURES + BENEFITS
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage and Column Material Q235B Steel
- Lifting operation by pressing "UP" button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading
- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8" diameter cable and 3" pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
-
SPECIFICATIONS
Model HW-8SXLT
Style 4-post Lock Release
Single Point Release
Warranty
3 years (36 months) Lifting Capacity
8,000 lbs Overall Length
178"
Overall Width
106"
Drive Thru Width
93"
Overall Height
84" Lifting Height 72" Clearance Under Runway 66" Runway Size 1165"l x 18 1/2"w Runway Between Runways 38" inside-inside, 75" outside-outside
Runway Gauge Steel 6 15/64" Column Cross Section 6"l x 4"w Removable Approach Ramp size 32"l x 18 1/2"w Lock Position 9 Positions:
28 3/4"
42 1/2"
46 1/2"
50 3/8"
54 3/8"
58 1/4"
62 1/4"
66 1/8"
70 1/8"Lifting Time 40 seconds Motor 110V Single Phase 1.5HP
10A (recommended a 30A breaker)Power cord 10 ft with plug Hydraulic Oil 3-5 gallons AW32/AW46 (not included) Shipping Weight 1,750 lbs Shipping package size 166"l x 22"w x 30"h Usage Parking/Storage/Service Finish Powder coated finish with superior corrosion resistance Cable Heavy Duty 3/8" diameter cables that reduce high stress on synchronization process and increase cable life Operational Jack ABJ-40 Air Operated Bridge Jack -
WARRANTY
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
- 3-Year Structural Components Warranty
Original: $4,499.00
-70%$4,499.00
$1,349.70
