The Story
-
DESCRIPTION

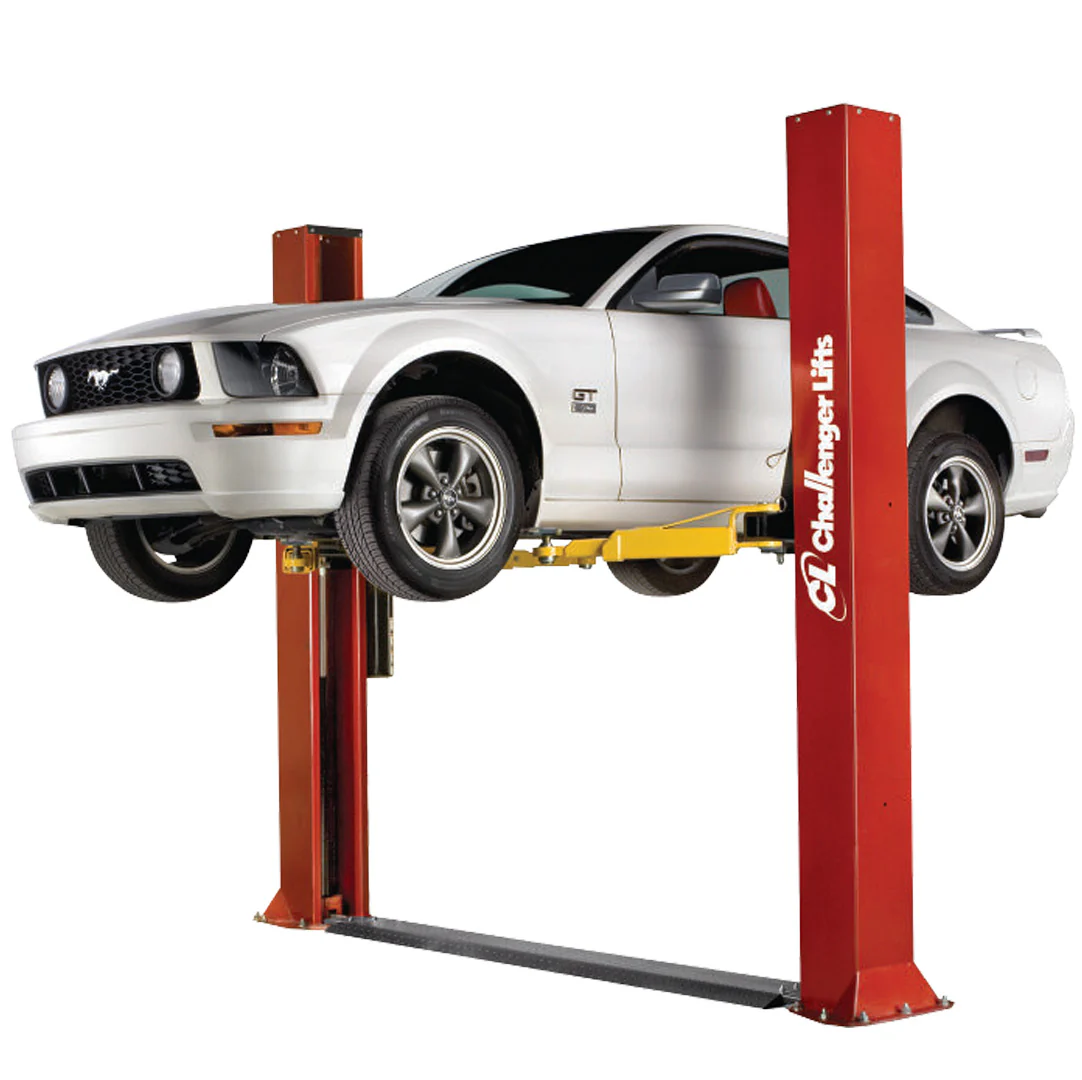

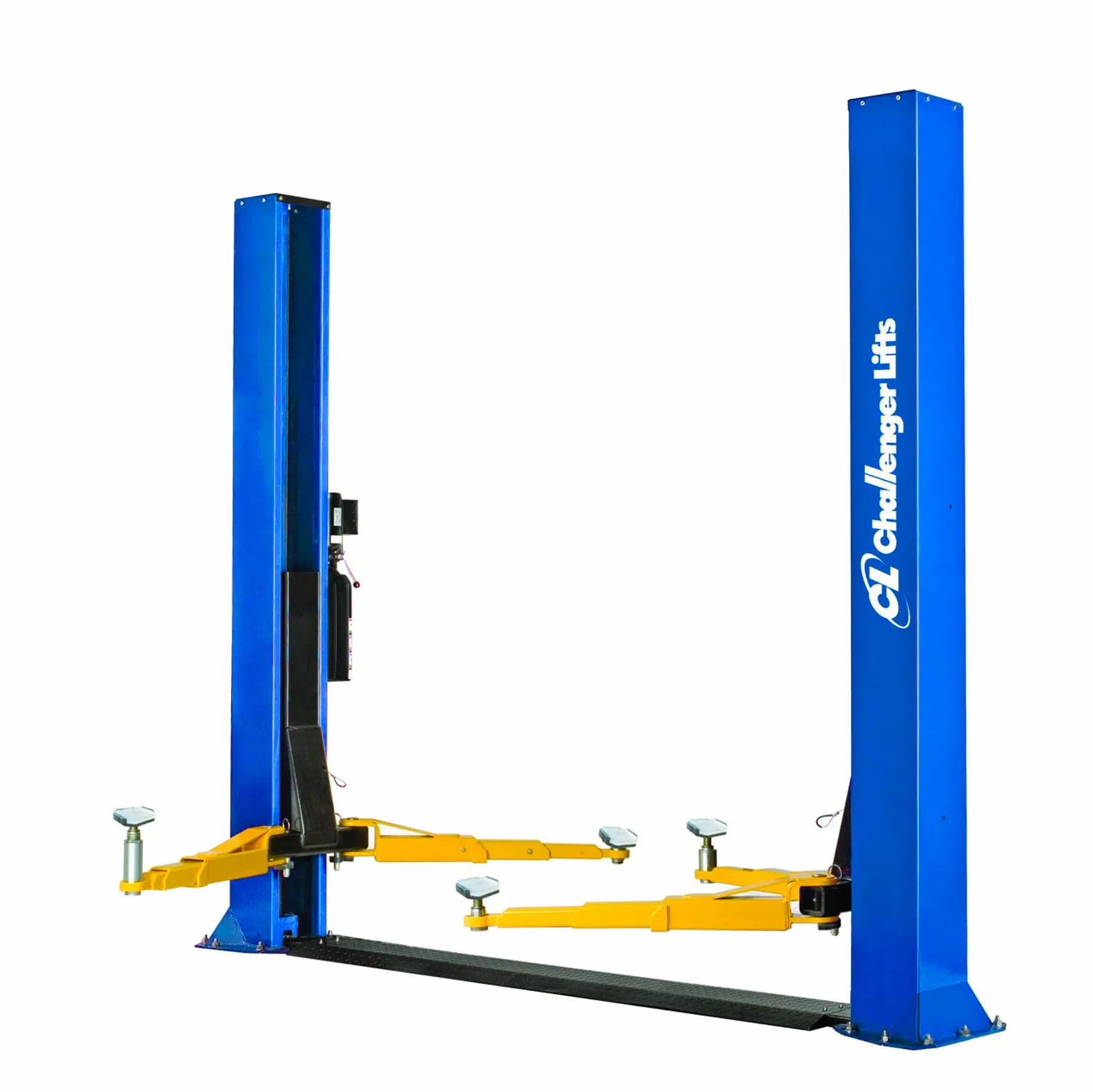

With a 9,000 lb. capacity and 10’ 7/8” overall column height, Challenger’s CLFP9 2-post is ideal for low-ceiling applications. 3-stage front and 3-stage rear arms provide maximum sweep, arm retraction, and reach. A low-profile drive-over floor plate allows for easy vehicle positioning, which makes it great for home enthusiast garages or professional service shops. The CLFP9 also features double-telescoping screw footpads, a durable powder coat finish, and plated arm pins.
-
FEATURES + BENEFITS
- 9,000 lb. lift capacity
- 10’ 7/8” overall column height is ideal for servicing vehicles in a low ceiling height
- Low profile drive-over floor plate for easy vehicle positioning
- 3-stage front and 3-stage rear arms accommodate a wide range of common cars, trucks, vans, and SUVs within the same service bay
- Electric/hydraulic heavy-duty chain lifting operation with cable equalization to reduce ceiling height requirement
- Dual-point mechanical pull-lock cable release system
- Fully gusseted base plate design increases column rigidity
- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
- Powder coat finish provides long-lasting durability
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
-
SPECIFICATIONS
Model Number CLFP9 Lifting Capacity 9,000 lbs. Lifting Configuration Symmetric Arms 3-stage front/3-stage rear Overall Height 120.875" Rise Height 78.125" Screw Pad Height 4" / 5.875" Overall Width 137.5" Inside Columns 109" Drive-Thru Clearance 98.187" Floor to Overhead Switch - Front Arm Reach 24.5" / 44.5" Rear Arm Reach 24.5" / 44.5" Motor / Voltage 2HP, 208v-203v, 60Hz, 1Ph Colors Black, Red
-
MANUAL + SPECS
