Original: $4,899.00
-70%$4,899.00
$1,469.70The Story
-
DESCRIPTION
Atlas® Automotive Equipment BP-10000 Floor Baseplate 2 Post Lift 10,000 lbs
The Atlas® BP-10000 commercial grade 2-post base plate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP-10000 incorporates the popular single point lock release. Columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a SMART CAR and only have an 11 foot ceiling, then this is the lift for your shop.
-
FEATURES + BENEFITS

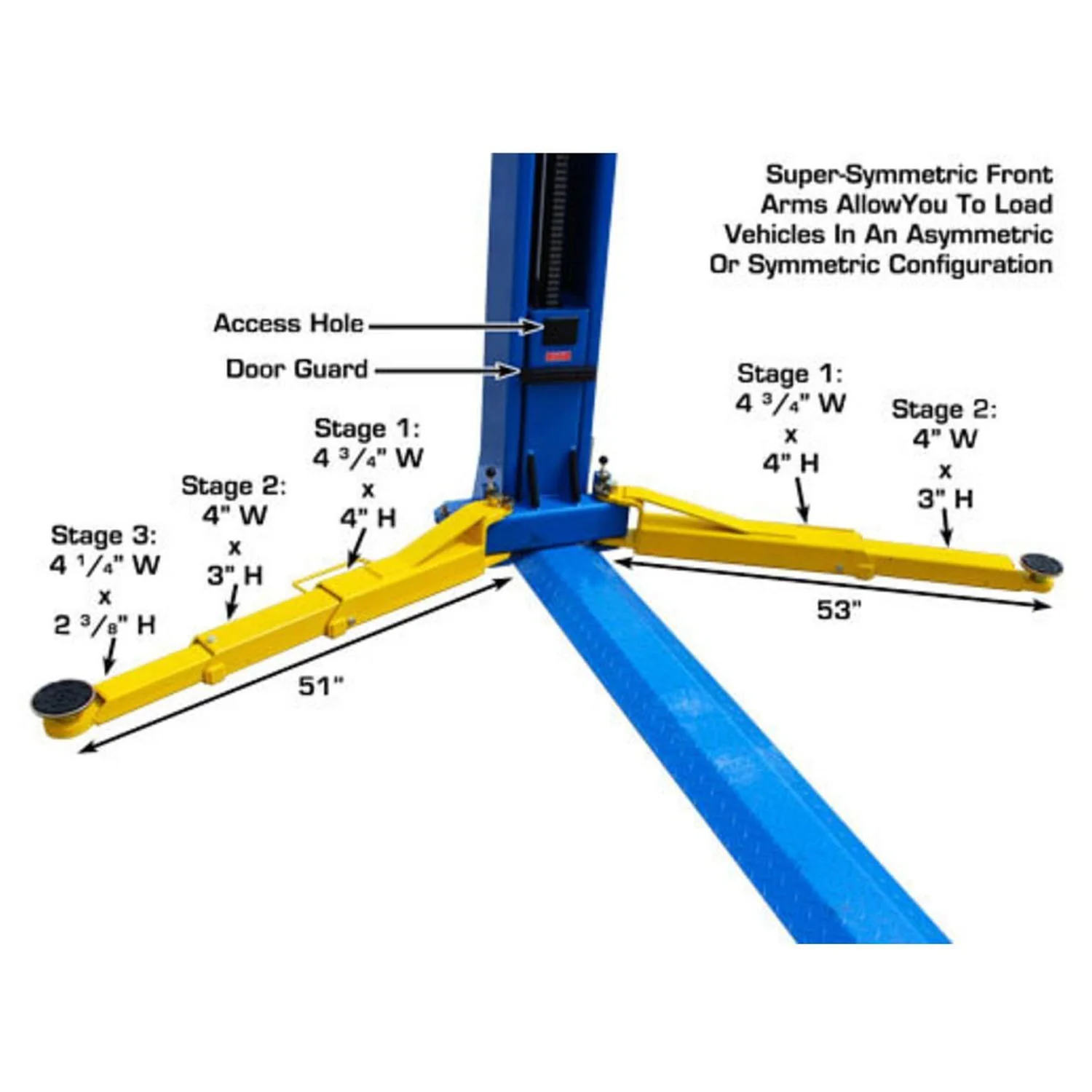

- Super-Symmetric Arms

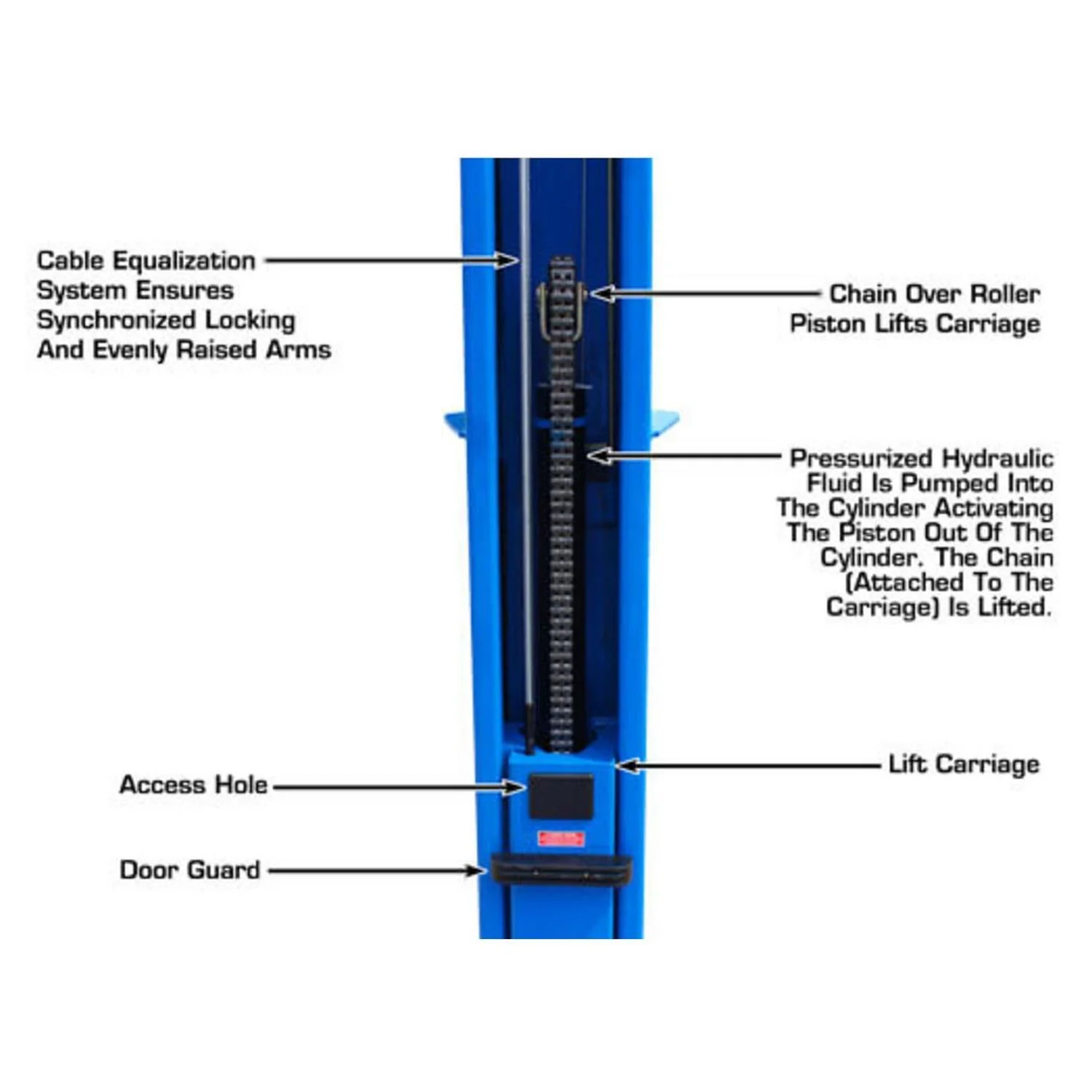

- Dual Hydraulic Chain-Drive Cylinders Made On ANSI Standard

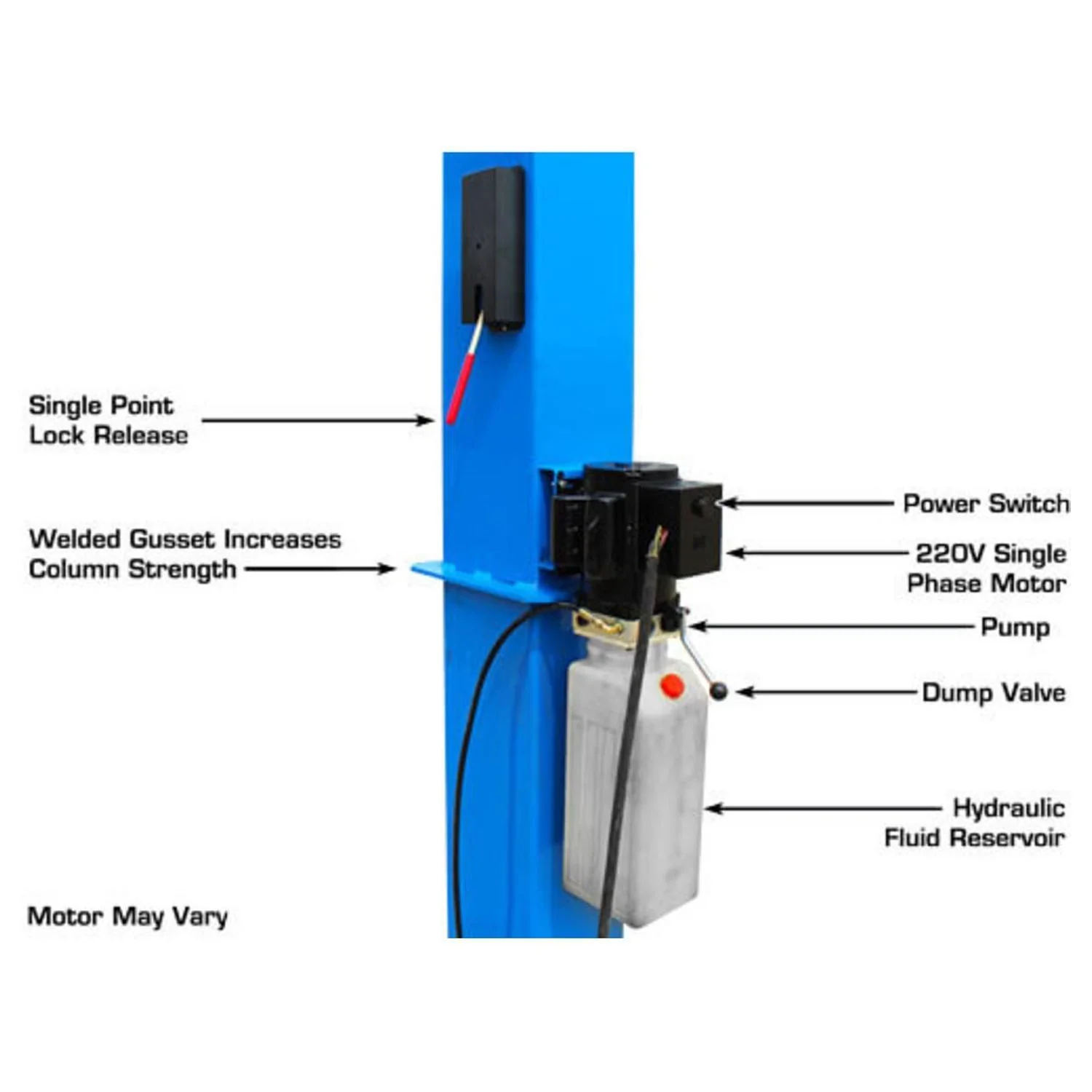

- Single-Point Lock Release Allows Both Columns To Be Disengaged
- Simultaneously
- Base Plate Design
- Welded Support Gussets Increase Column Strength.

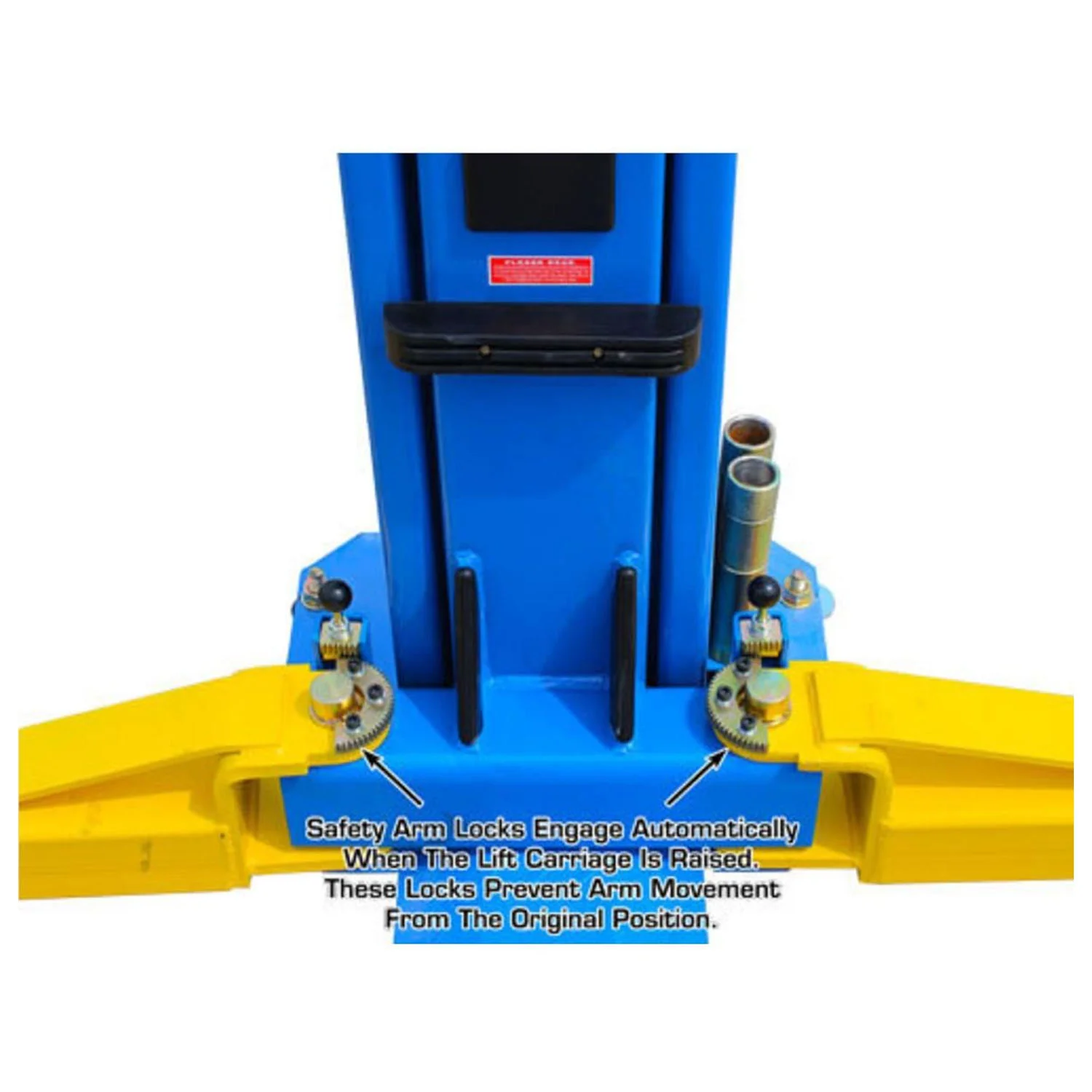

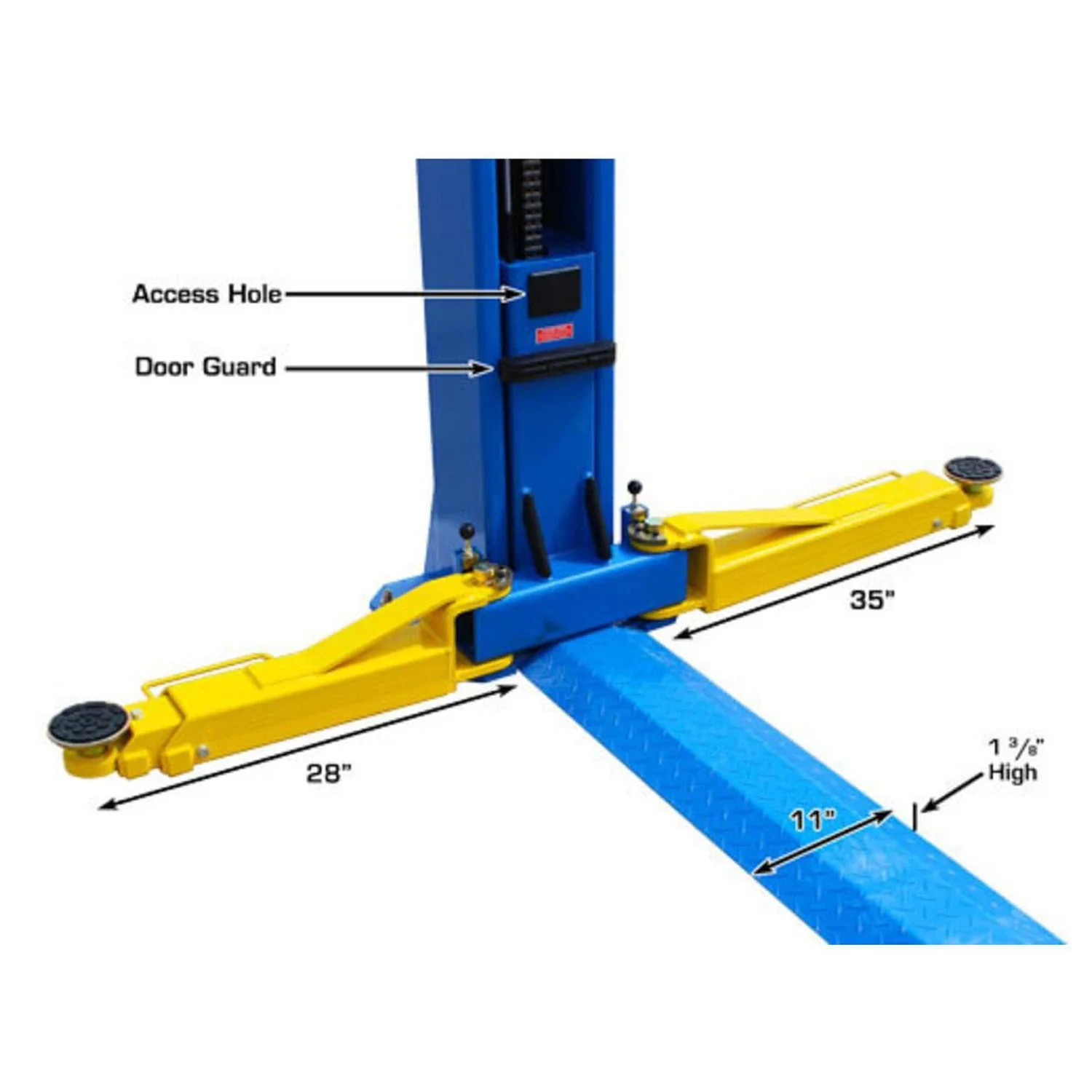

- Automatic Arm Restraints
- Powder Coat Finish

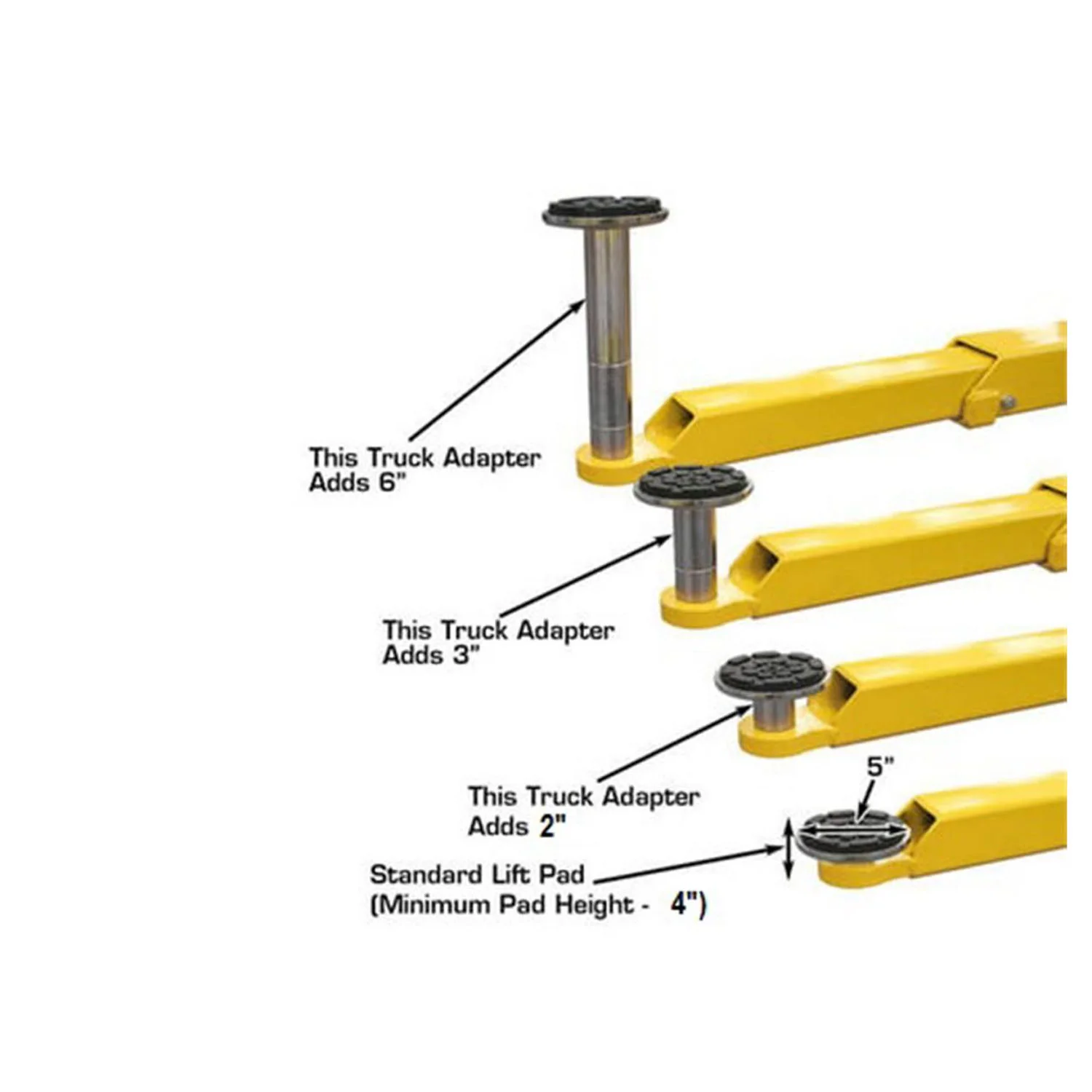

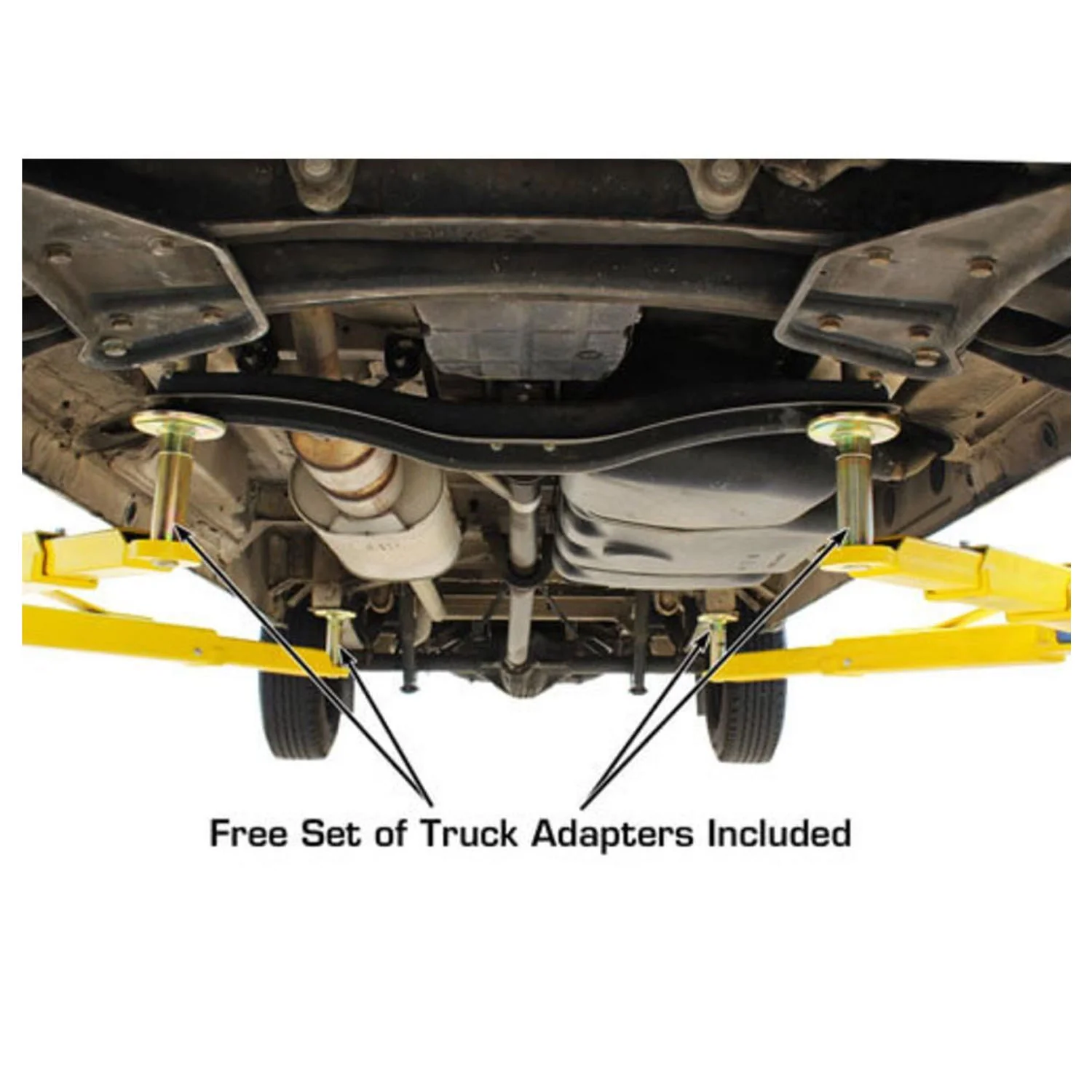

- Free 12 Piece Truck Adapter Set
Includes
- 4 Each - 2", 3", & 6" Adapters
-
SPECIFICATIONS

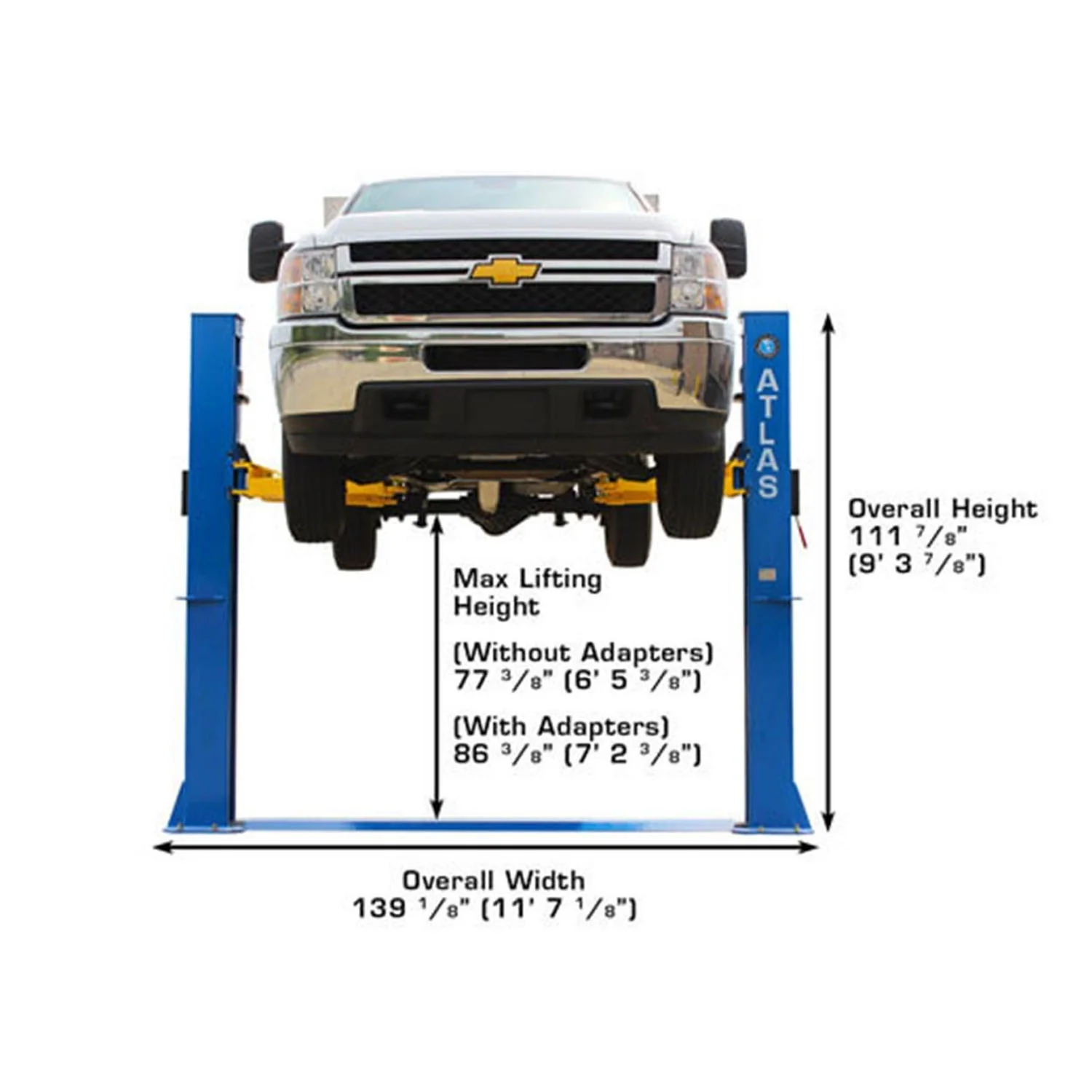

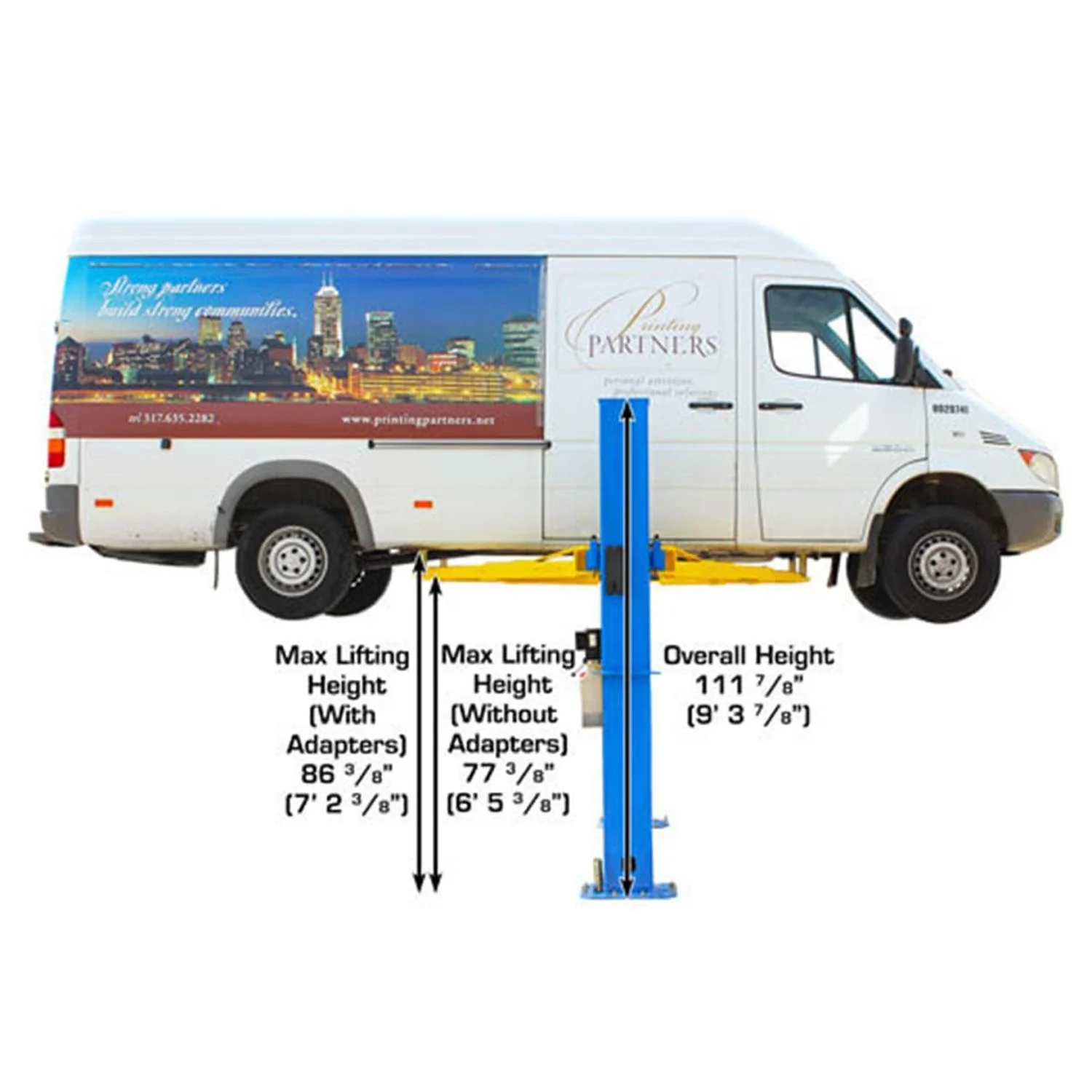

Lifting Capacity 10,000 lbs Overall Height 111 7/8" (9' 3 7/8")
Overall Floor Width 139 1/8" (11' 7 1/8") Outside Column To Outside Column 134 1/2" (11' 2 1/2") Maximum Lift Height w/adapters 86 3/8" (7' 2 3/8")
Maximum Lift Height w/o adapters
77 3/8" (6' 5 3/8")

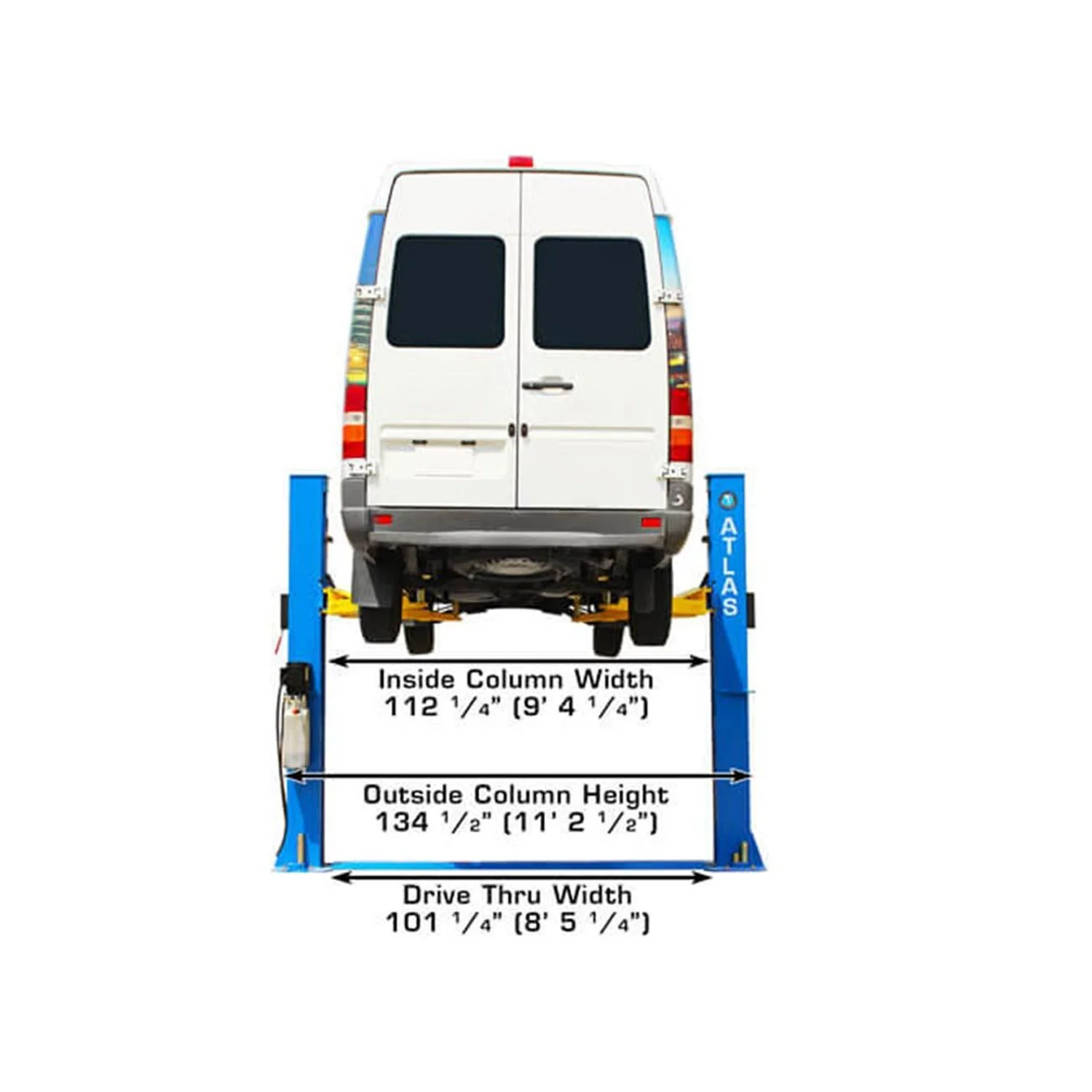

Minimum Arm Height 4" Inside Column 112 1/4" (9' 4 1/4")
Drive Thru 101 1/4" (8' 5 1/4")

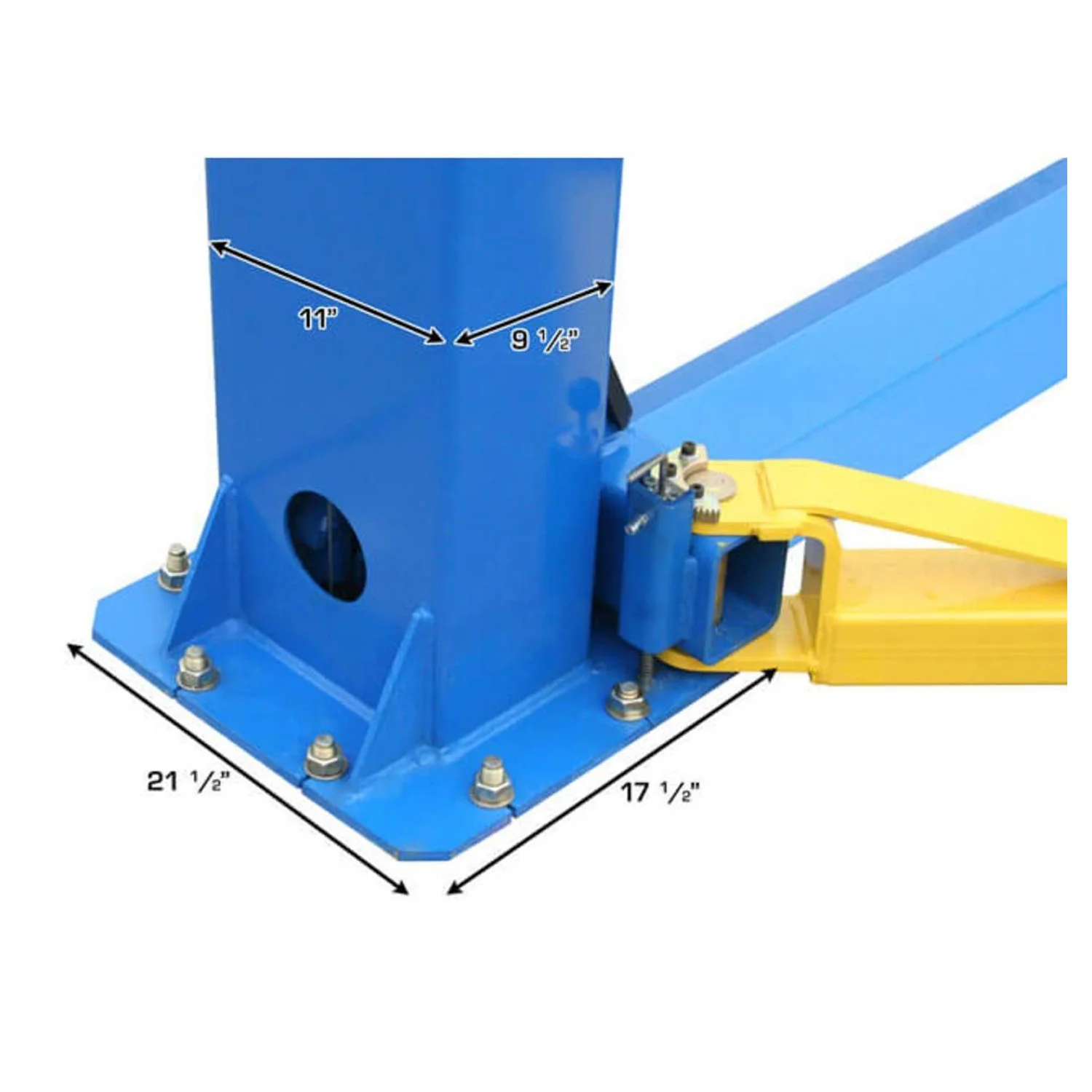

Column Size 9 1/2" x 11"
Column Thickness of Steel 6mm Base of Lift 17 1/2" x 21 1/2"
Arm Hole/Adapter Peg Size 1.5” Motor/Electrical Requirement 220V single (1) phase / 30 amp breaker is required.
Oil Requirements 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight 1,640 lbs. -
WARRANTY
Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
- 5-Year Structural Warranty
