Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD
HomeStore

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD

$1,769.70

Original: $5,899.00

-70%
Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD—

$5,899.00

$1,769.70

The Story

  • DESCRIPTION

    AtlasĀ® PV15PX Two Post Lift – Heavy-Duty Performance at Unbeatable Value

    The AtlasĀ® Platinum PVL9BP is a 9000 LB capacity, base-plate two-post lift designed for professional service centers. The open-top design of this lift makes it ideal for garages with low ceilings or for customers who don't want to worry about the limitations of a top beam. The total column height is 111 1/8" (9' 3 1/8"). The AtlasĀ® Platinum PVL9BP can lift a range of the most common vehicles on the market, both foreign and domestic, while also having the capacity to handle both full-size pickups and commercial vehicles.The AtlasĀ® Platinum PVL9BP is ALI Certified and backed by one of the Industry's best warranties for an added piece of mind.The AtlasĀ® Platinum PVL9BP features a premium ALLY power unit which is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

  • FEATURES + BENEFITS

    • ALI Certified
    • 9,000 lb. Capacity
    • Commercial Grade
    • 3-Stage Symmetric Arms
    • Base Plate, Open-Top Design
    • Designed For Low Ceiling Clearance ‐ 9' 3 1/8" Columns
    • Dual Hydraulic Chain-Drive Cylinders
    • Secondary Lock System (SLS)
    • Automatic Arm Restraints

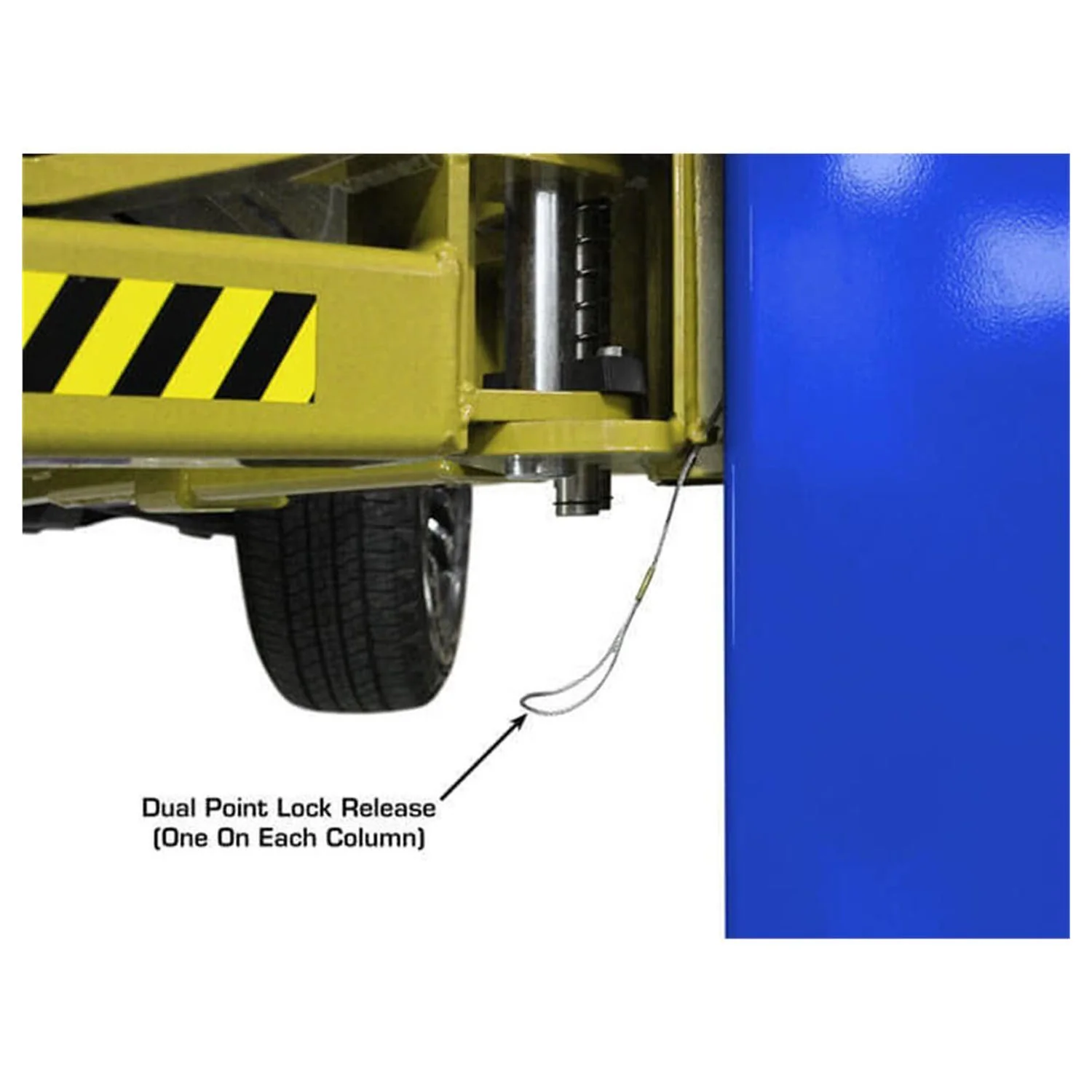

    • Dual Point Lock Release

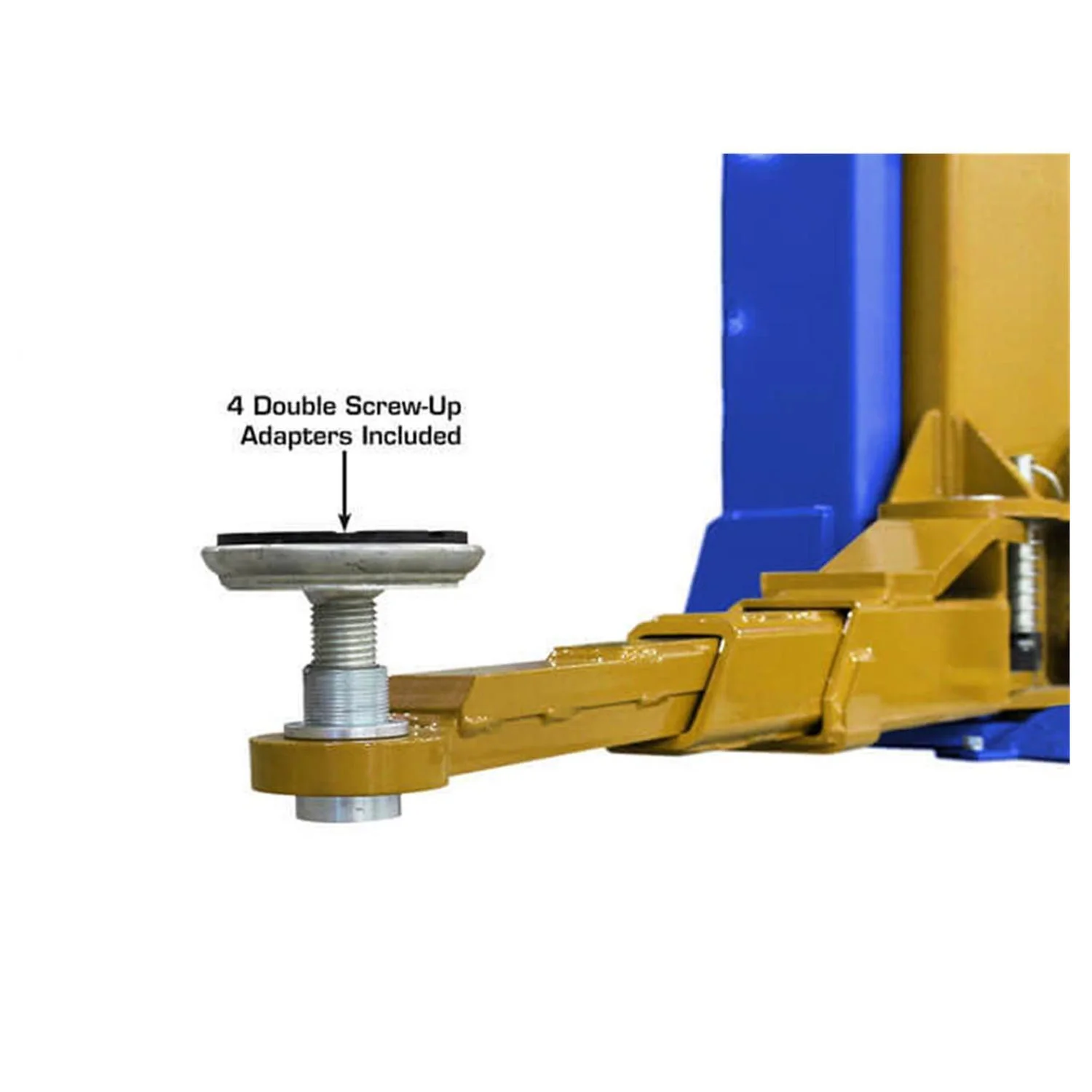

    • Includes Double Screw-Up Adapters

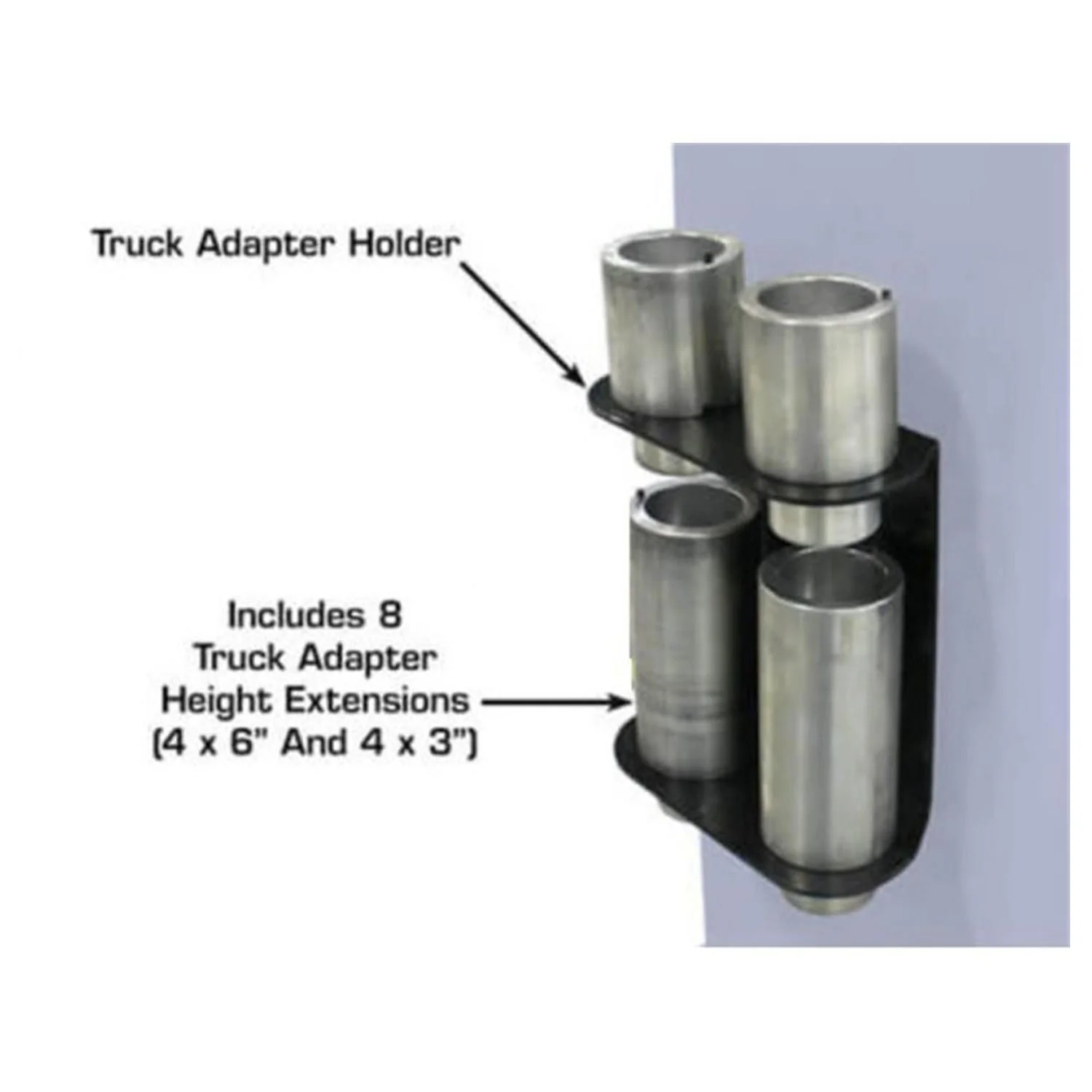

    • Free 8 Piece Truck Adapter Set

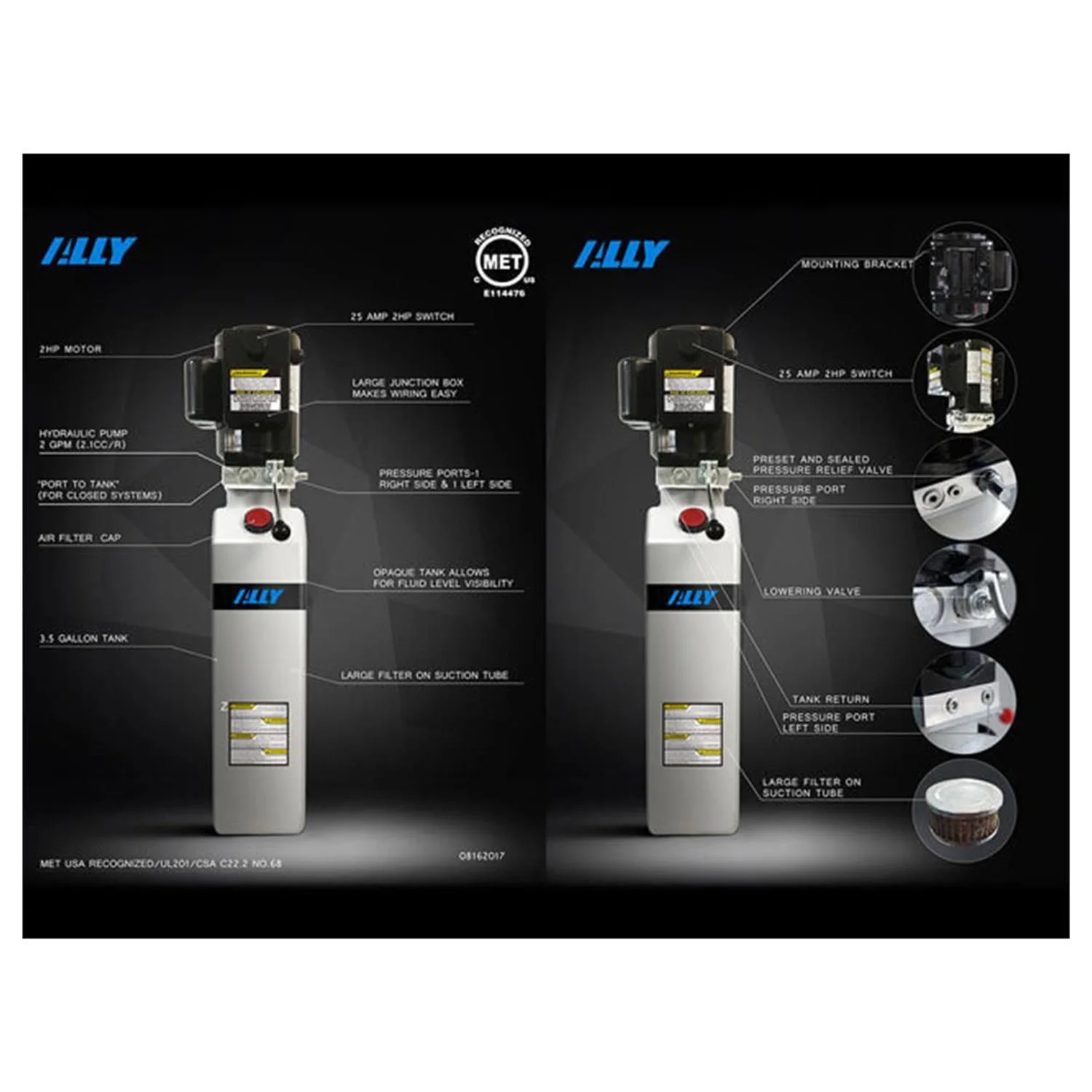

    • Standard with Premium ALLY Powerunit
    • Mounting Hardware Included

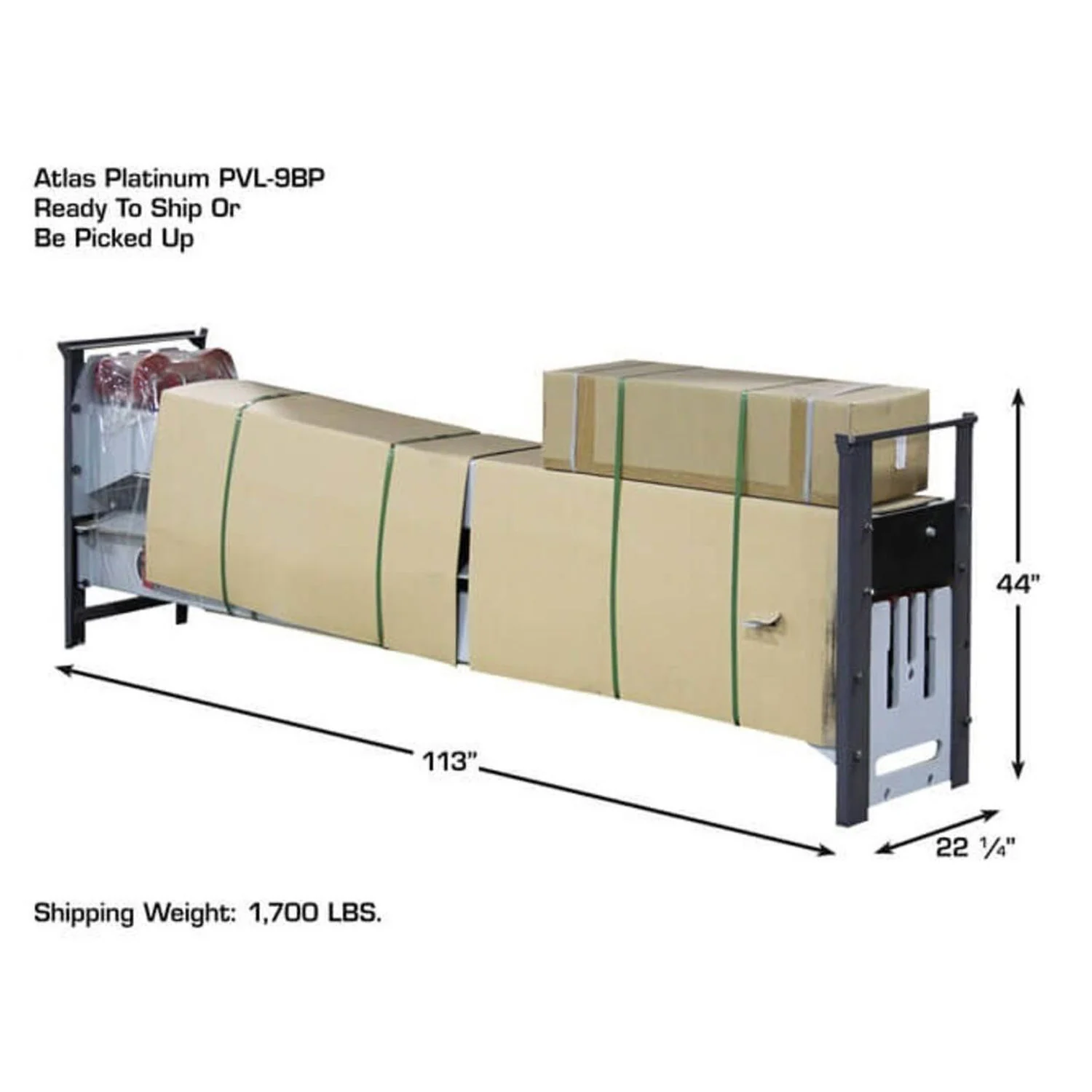

    • Shipping Weight: 1,700 lbs.
    • 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Powerunit Warranty

    Includes

    • Mounting Hardware
    • 8 Piece Truck Adapter Set
  • SPECIFICATIONS

    Lifting Capacity 9,000 lbs
    Overall HeightĀ  1111 1/8" (9' 3 1/8")

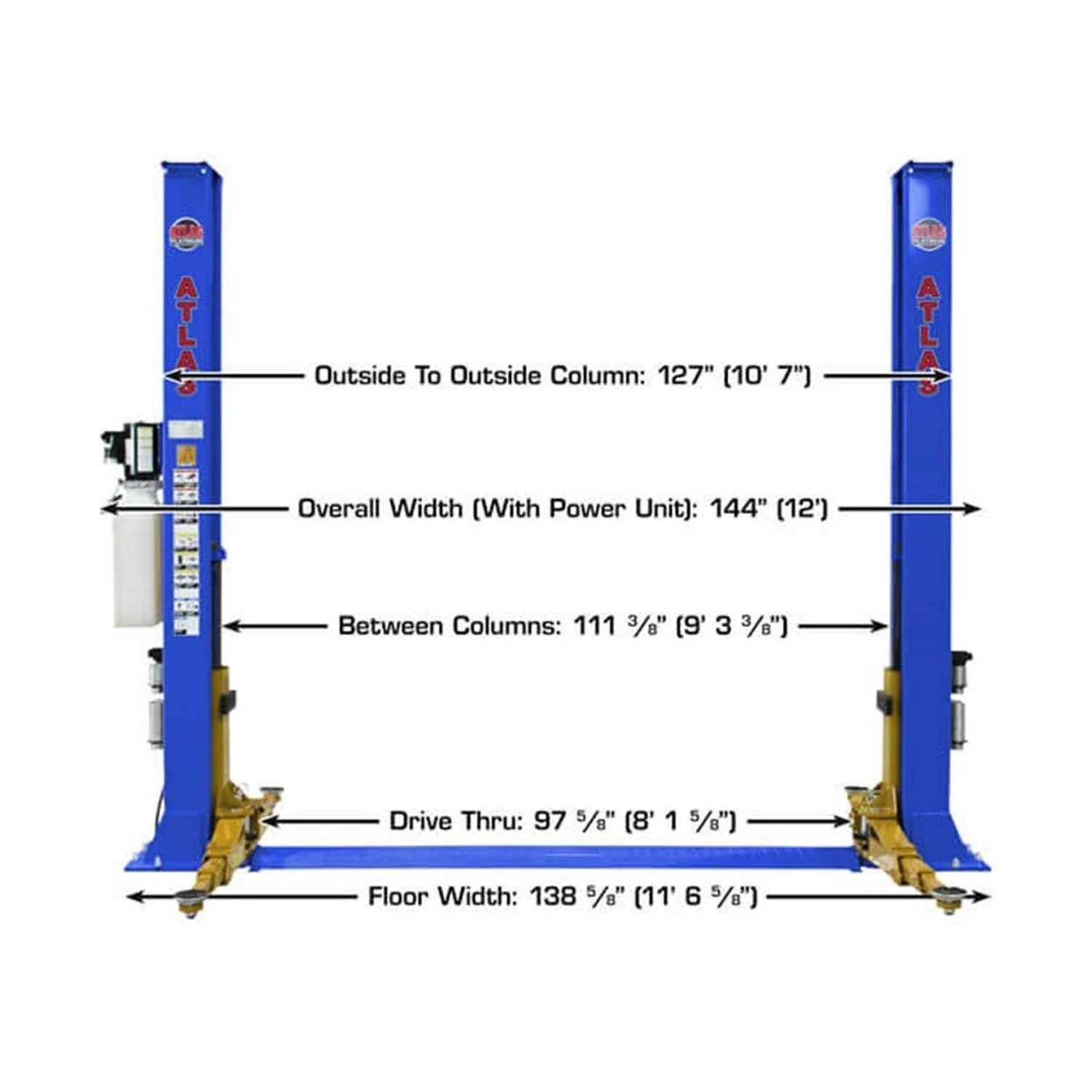

    Floor Width 138 5/8" (11' 6 5/8")
    Overall Width w/Power Unit
    144" (12')
    Outside Column To Outside Column
    127" (10' 7")

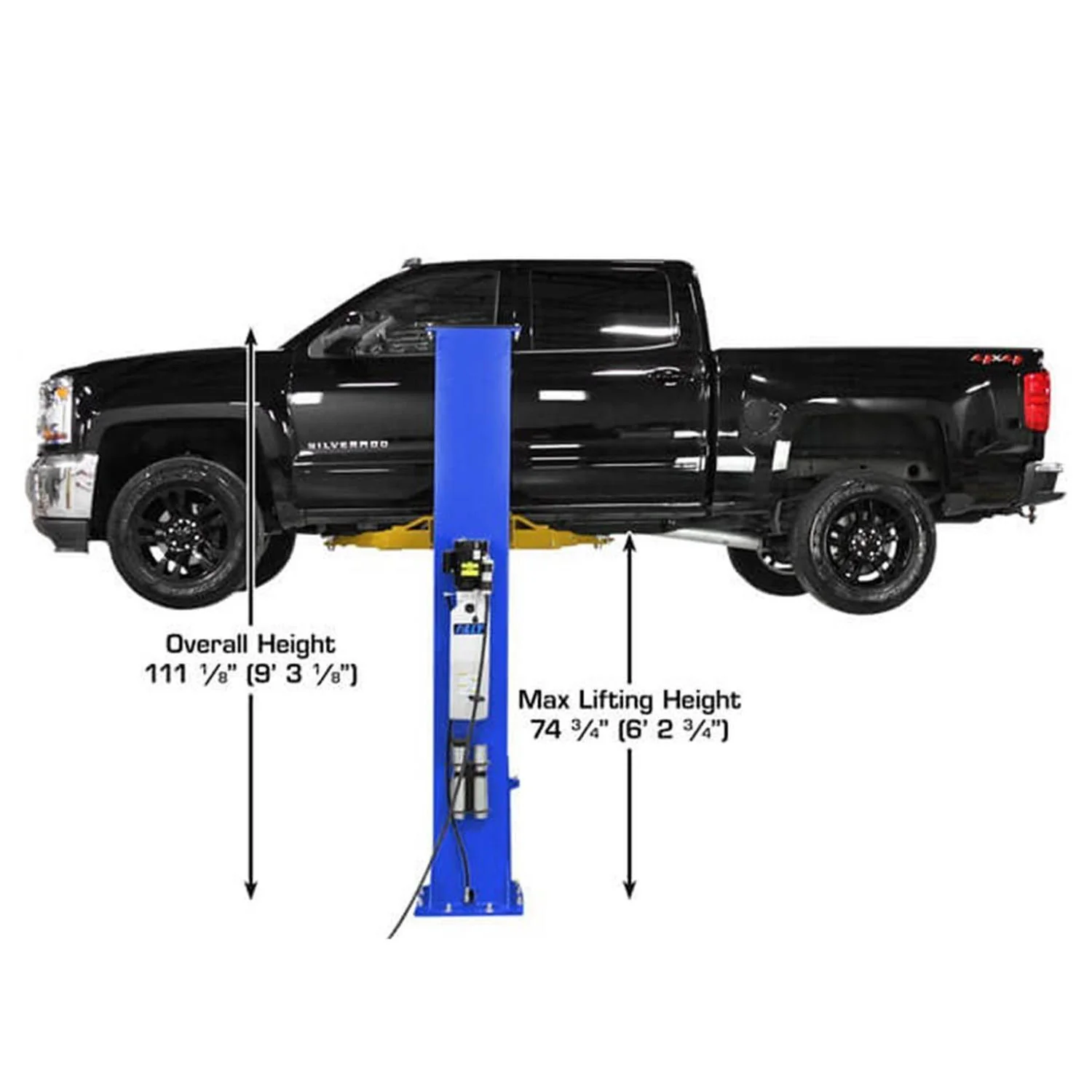

    Max Lift Height
    74 3/4" (6' 2 3/4")
    Minimum Lowered Height
    5"

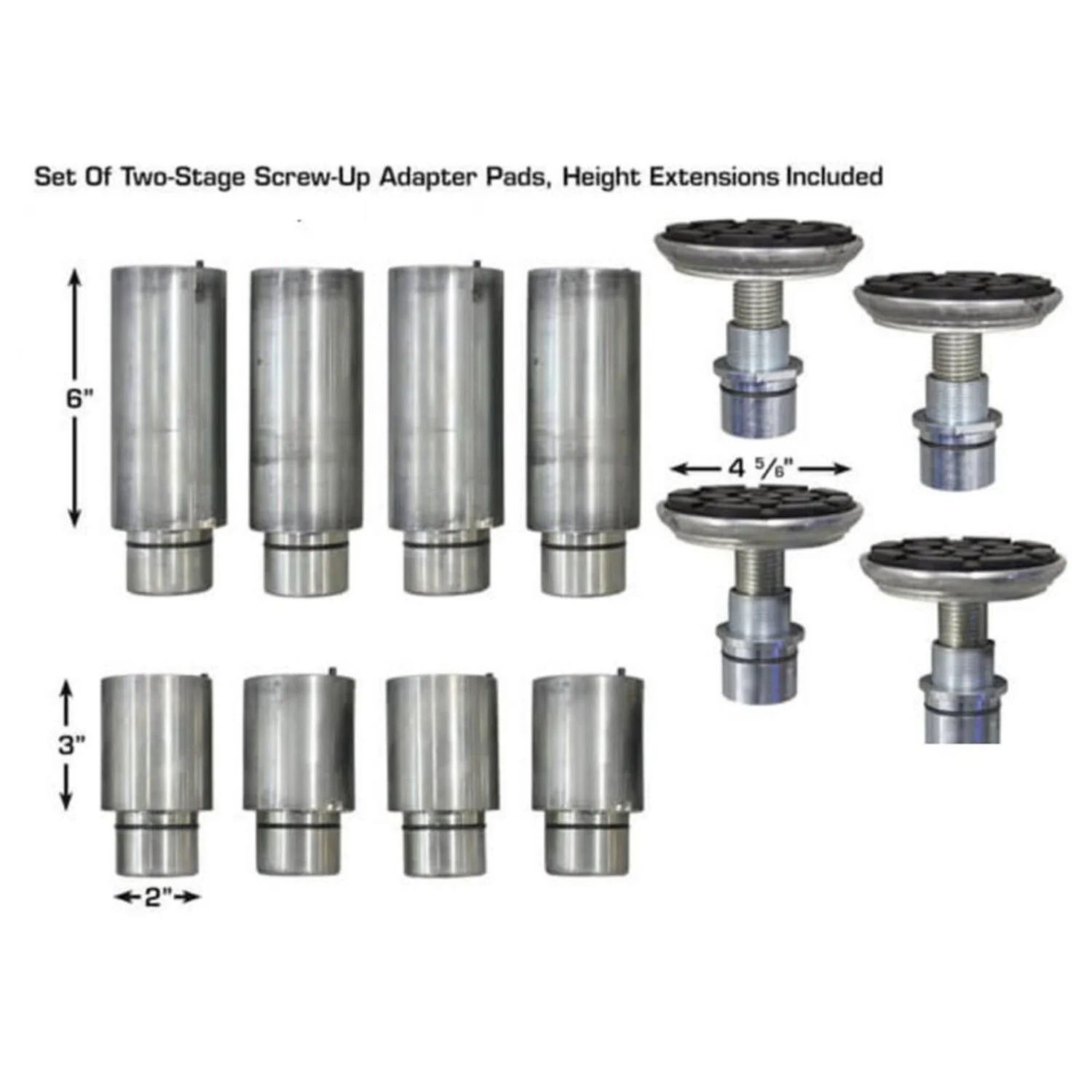

    Adapter Height
    3" & 6"
    Inside Column to Inside Column
    111 3/8" (9' 3 3/8")
    Drive Thru
    97 5/8" (8' 1 5/8")
    Arm Length
    30 1/8" - 46"
    Column Measurement
    14 1/4" x 7 5/8"
    Base of Column Measurement 20 1/2" x 19 1/2"
    Motor/Electrical Requirement 220V single (1) phase / 30 amp breaker is required.
    Shipping Weight 1700 lbs.
  • WARRANTY

    Warranty Information

    • 5-Year Structural Warranty
    • 2-year Hydraulic-Power Warranty
Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

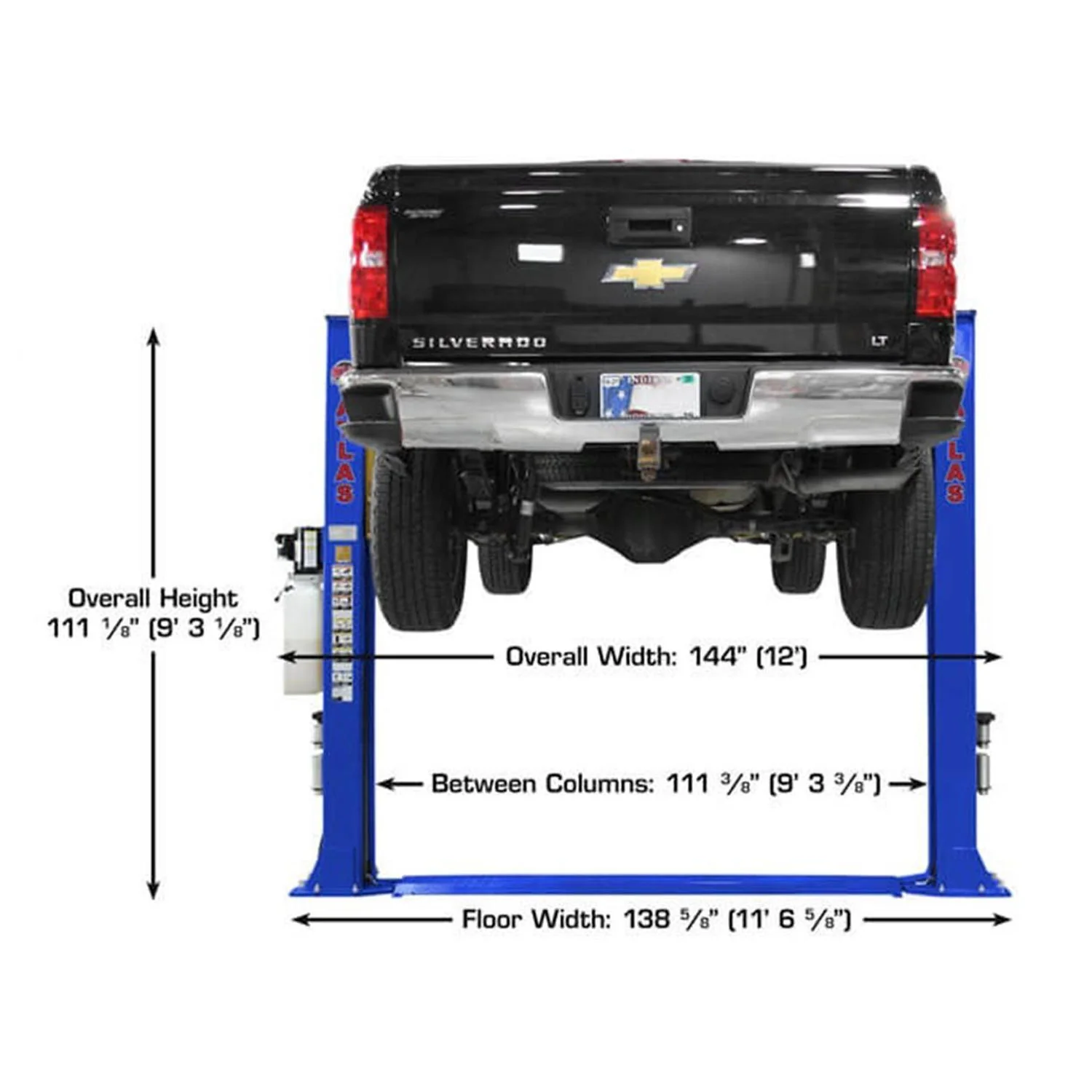

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

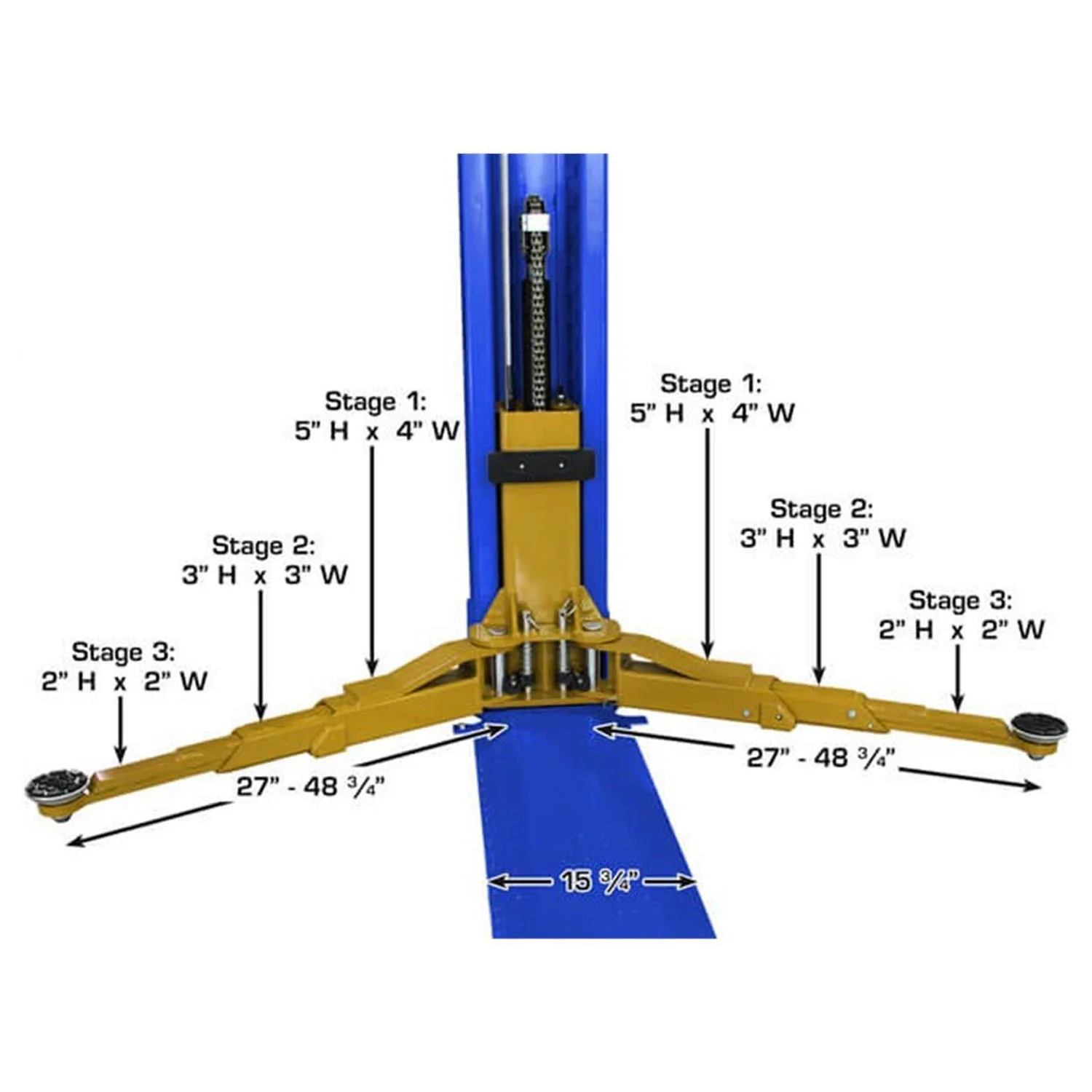

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

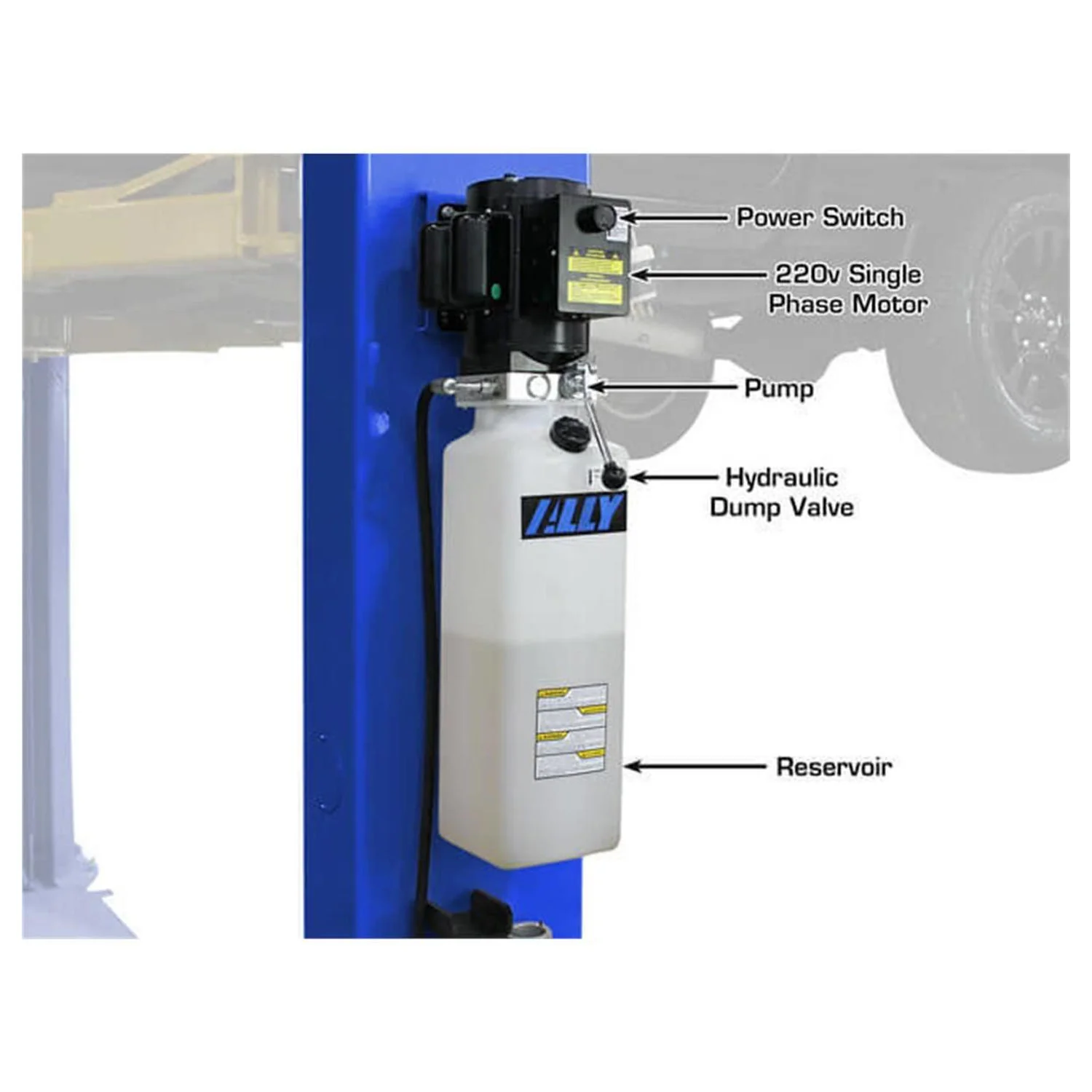

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 14

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

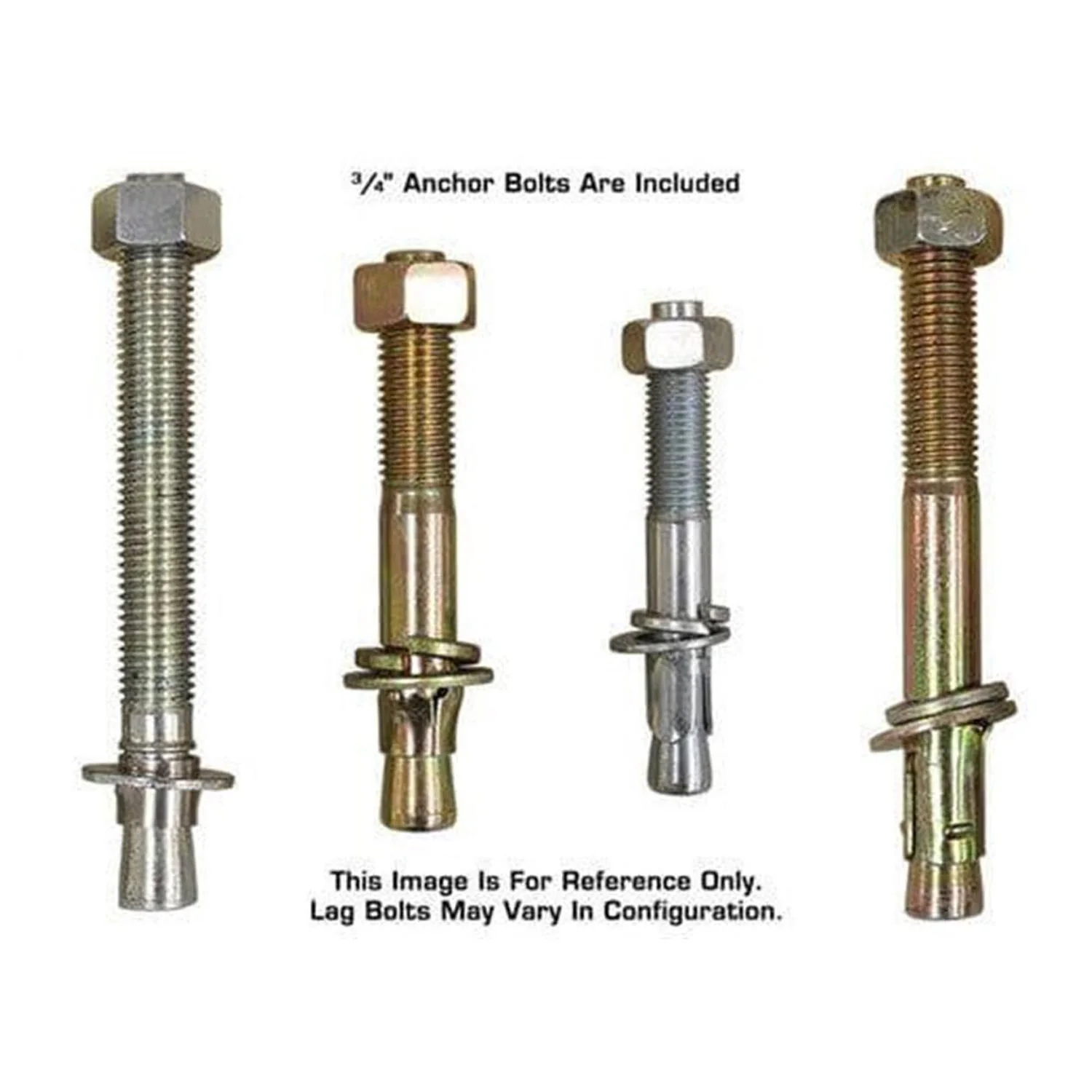

Atlas Platinum PVL9BP ALI Certified 2-Post Lift 9,000 lbs. #ATEAP-PVL9BP-FPD - Image 15
