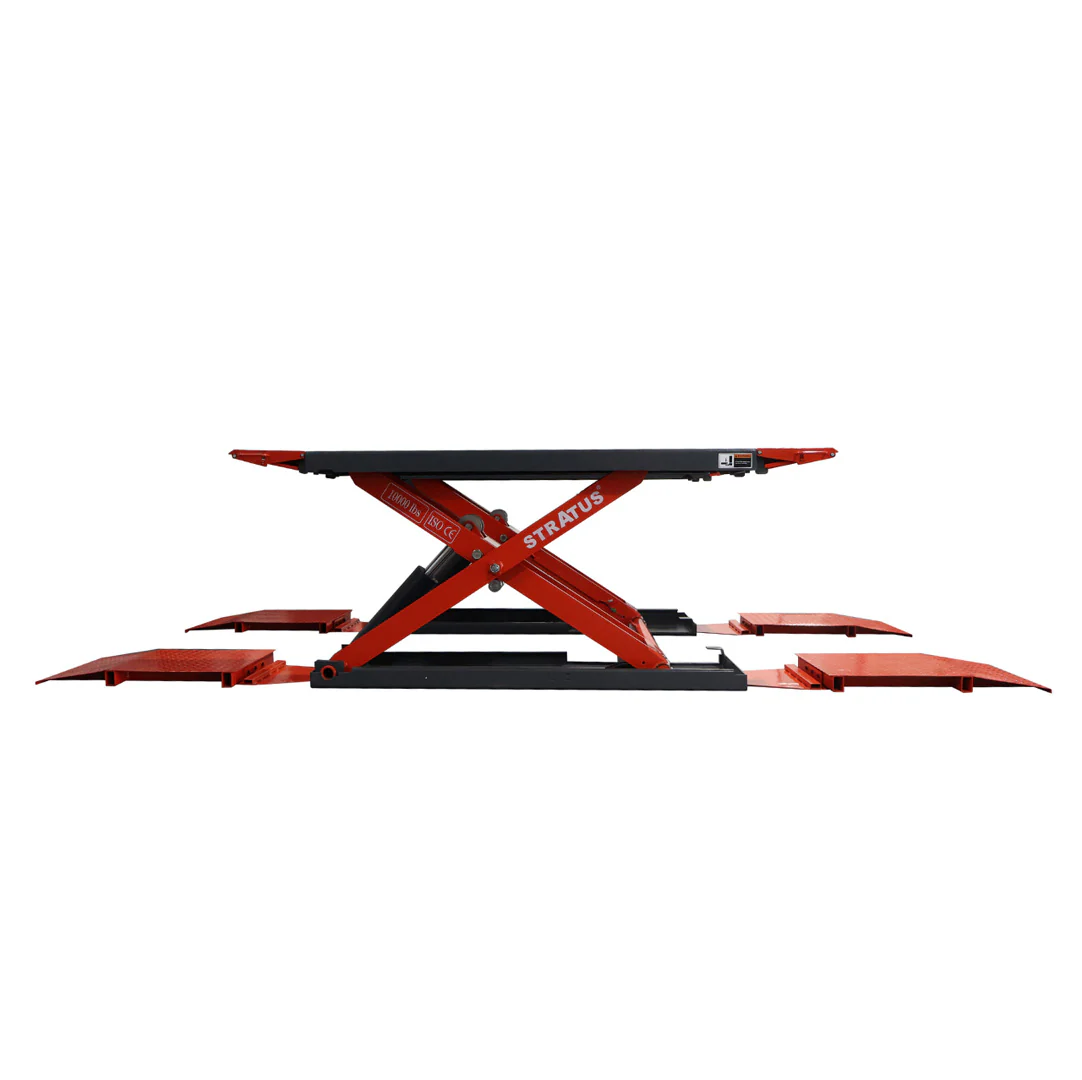

Stratus SAE-MS10000P Extra Wide Extra Tall Commercial Grade 10,000 LBS Open Center Mobile Mid Rise Pneumatic Safety Lock Release Scissor Vehicle Lift 110V
Boost your productivity with the Stratus Extra Wide Commercial Grade 10,000 LBS Open Center Mobile Mid Rise Pneumatic Safety Lock Release Scissor Vehicle Lift SAE-MS10000P. This reliable lift has a 10,000 LBS capacity, pneumatic safety lock option, and open center design for maximum efficiency in your workspace.
-
FEATURES + BENEFITS
- Commercial-grade mobile design
- Open center
- Extra wide / Extra tall up to 47 1/4"

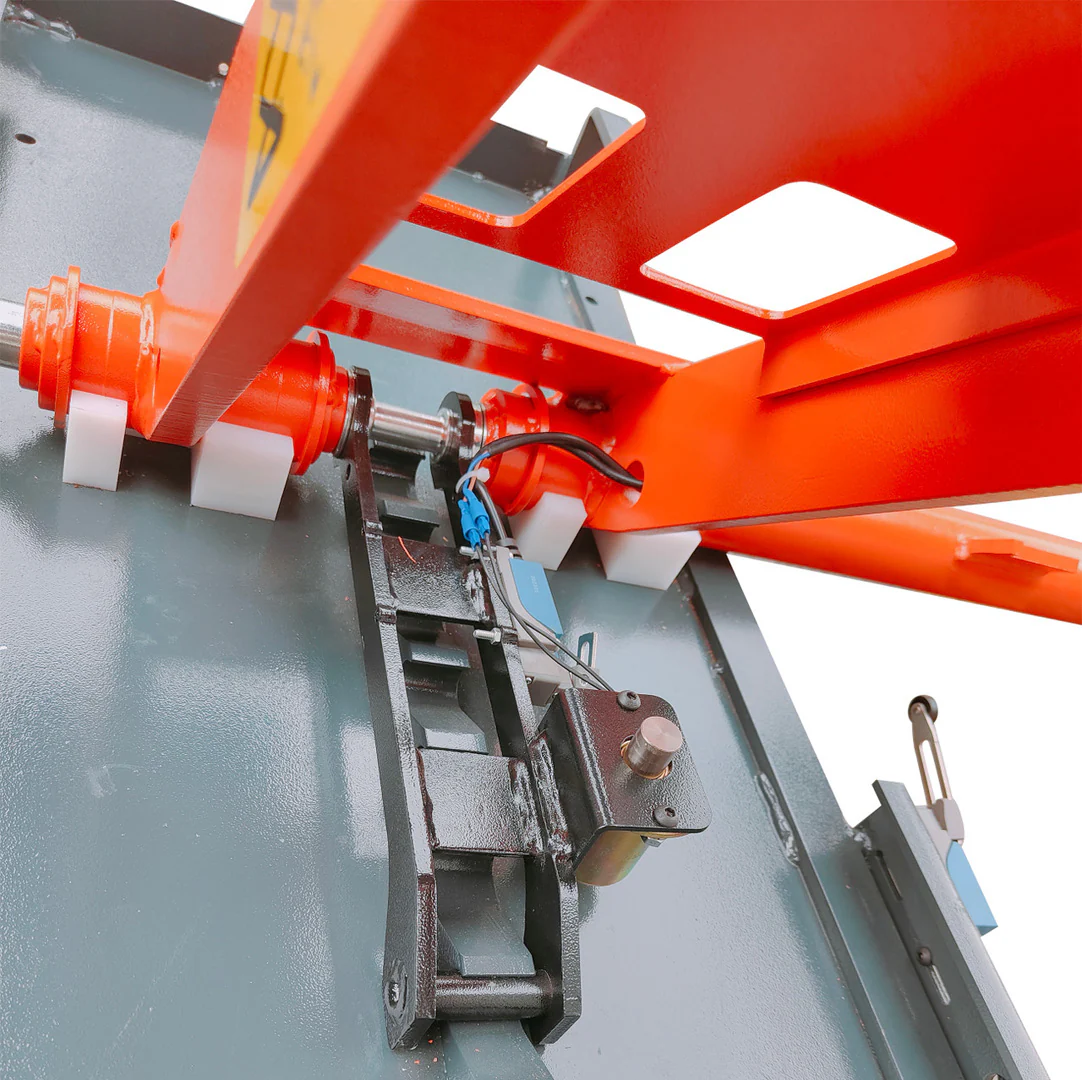

- Pneumatic safety lock release
- Safety lock fail sensor

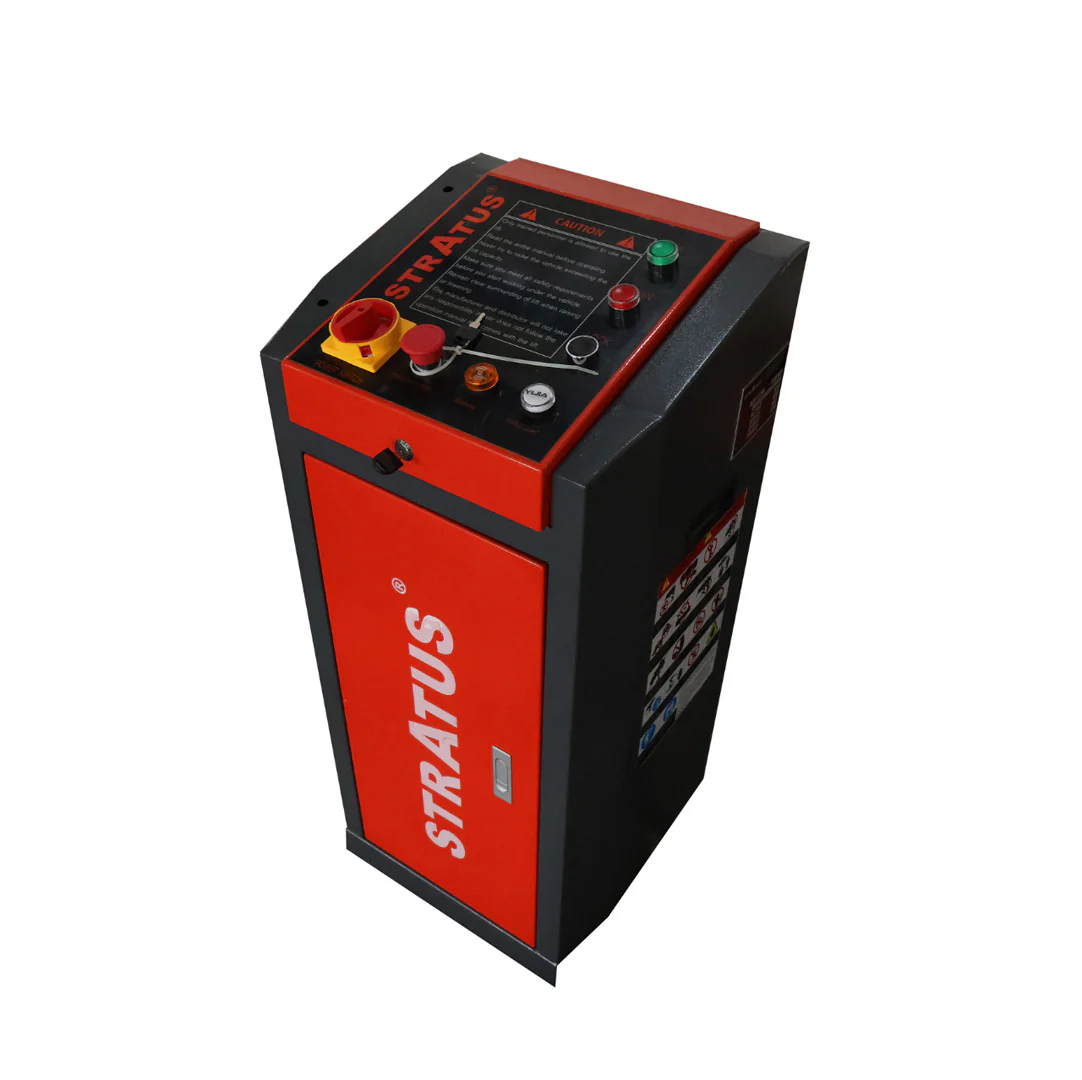

- Programmable Logic Controller (PLC)
- Available in 110V
- 24V low-voltage Motor control system
- Including 8-lock positions
- Self-lubricated bushing and bearing
Standard Accessories
- Ramps (4pcs)
- Rubber Pads (8pcs)- 4pc of each 1 3/8” & 2 3/8” thickness
- Mobile Kit
-

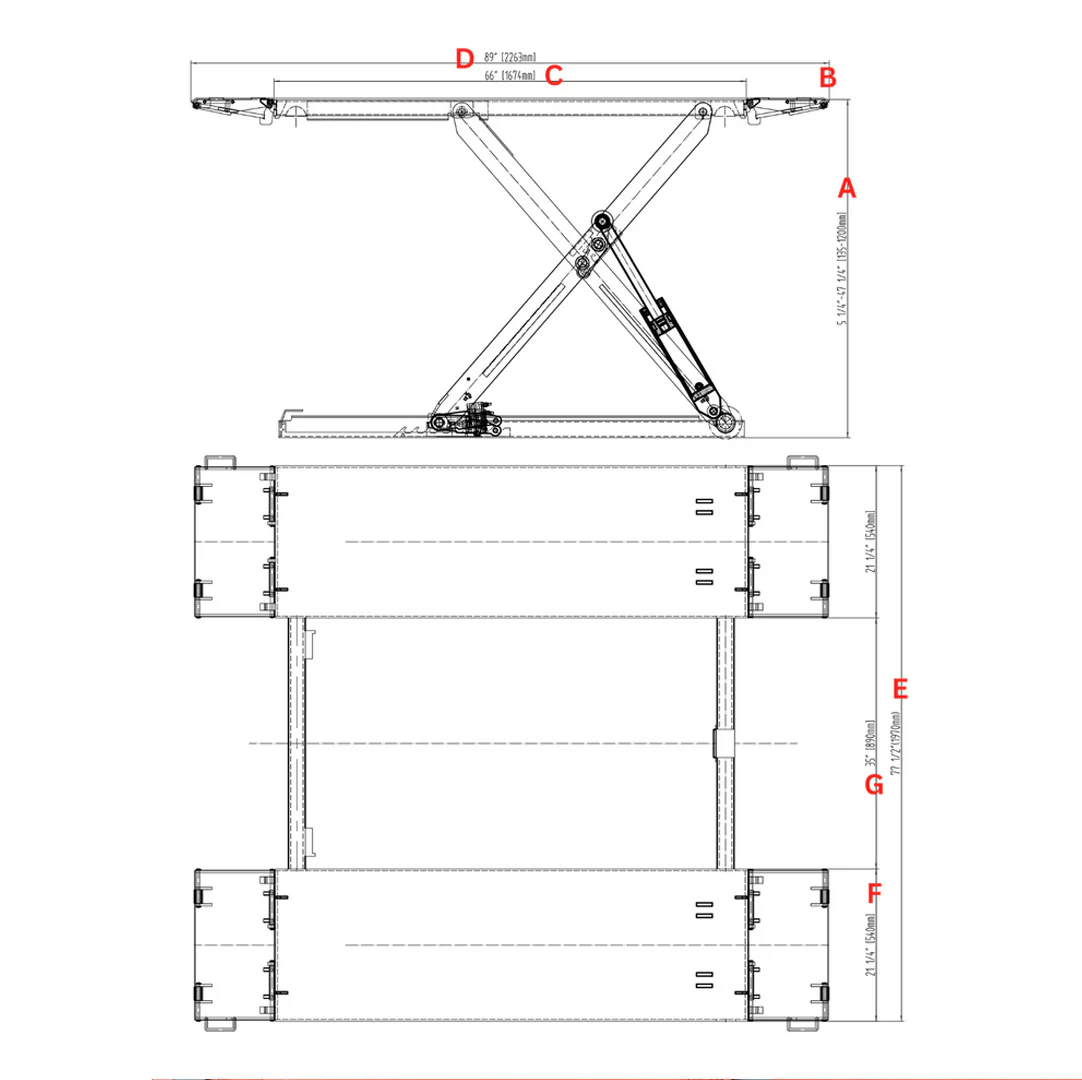

SPECIFICATIONS
Model MS10000P Capacity 10,000 lbs Lifting time ~40 Sec
Max Height
47 1/4" (1200mm)
Min Height
5 1/4" (135mm)
Platform Length without Ramp
66" (1674mm)
Platform Length with Ramp 89" (2263mm) Overall Width
77 1/2" (1970mm)
Platform Width 21 1/4" (540mm) Width Between Platforms
35" (890mm)
Motor
3 HP, 110V / 220V, 60 HZ, 1ph
Oil
AW32 or AW46
Breaker
30A Platform Shipping Weight 1581 lbs Platform Shipping Dimensions 80"L x 72"W x 12"H
Control Panel Shipping Weight 133 lbs. Control Panel Dimensions 37"L x 17"W x 22"H -
WARRANTY + DOCS
Warranty Information
- 5-Year Structural Warranty
- 2-year Electric Warranty
- 5-Year Structural Warranty
