DESCRIPTION
Stratus SAE-414A 4 Post 14,000 LBS Capacity Pneumatic Safety Lock Release Alignment Car Lift
Stratus Auto Equipment is synonymous with quality and strength. Our 4 Post 14,000 lbs Capacity Pneumatic Safety Lock Release Car Lift SAE-414a is a testament to that! Say hello to a hefty 14,000 lbs 4-post lift, a hot commodity for car enthusiasts and professionals alike. The pneumatic safety lock release offers seamless operation, ensuring safety is at the forefront without compromise. Plug into the Stratus ecosystem and experience the ultimate in vehicle maintenance!
-
FEATURES + BENEFITS

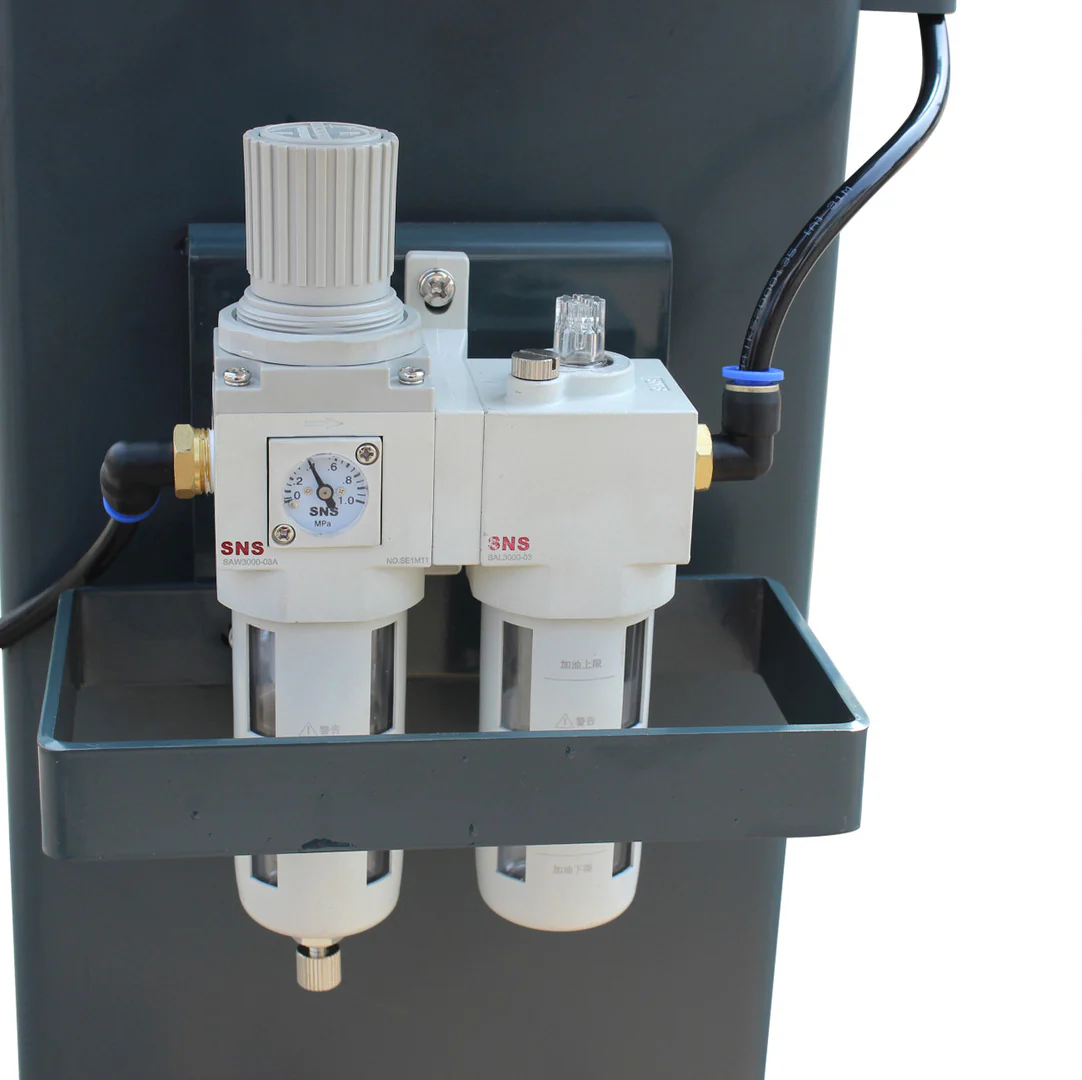

- Pneumatic safety lock release alignment lift
- Max lifting height limiter switch to ensure the cylinders work within the stroke

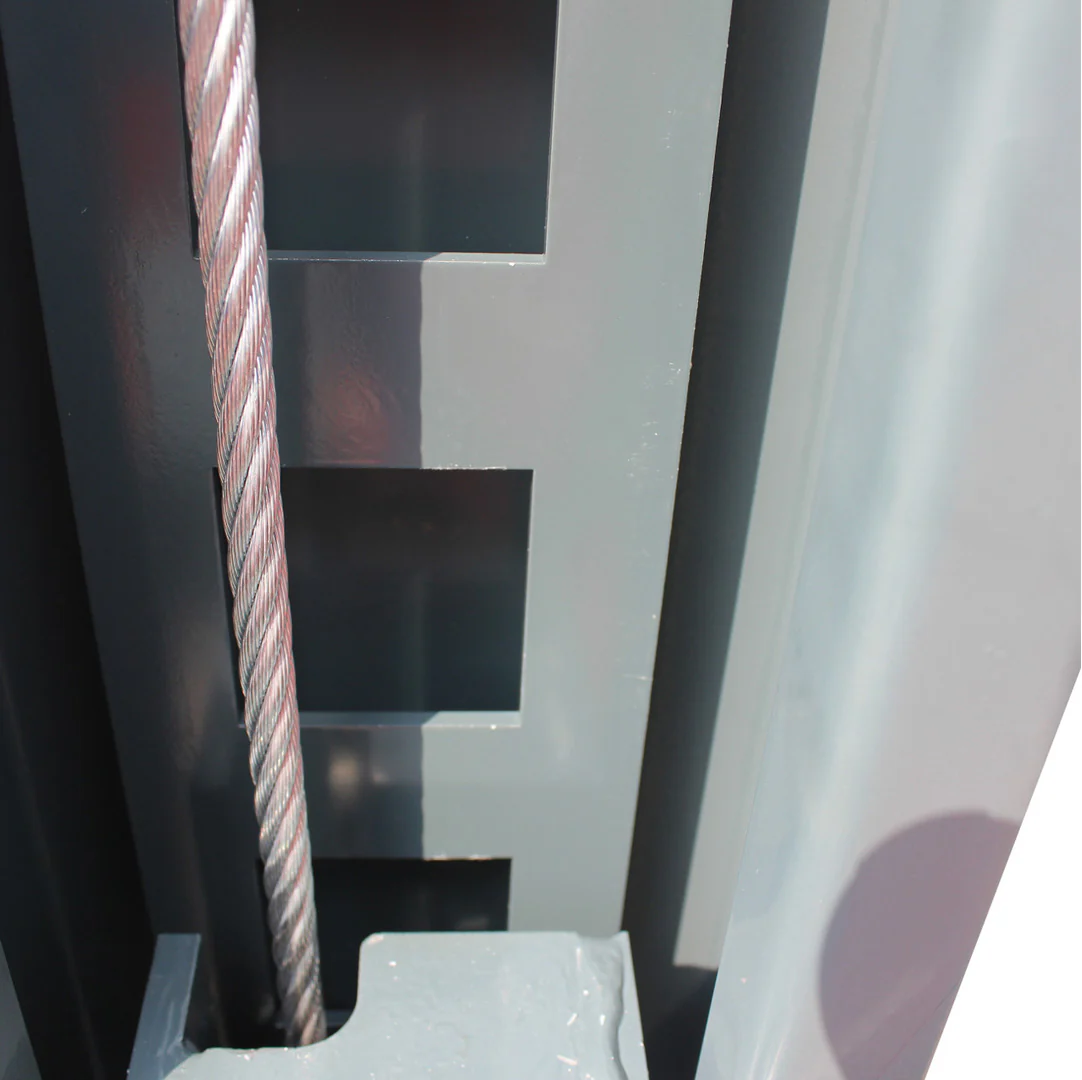

- Dual safety device design: Second safety device will be automatically locked while primary safety locks are out of operation.
- Optional rolling bridge jack
- Optional turntable plate
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Includes
- Rolling bridge jack
- Turntable plate
-

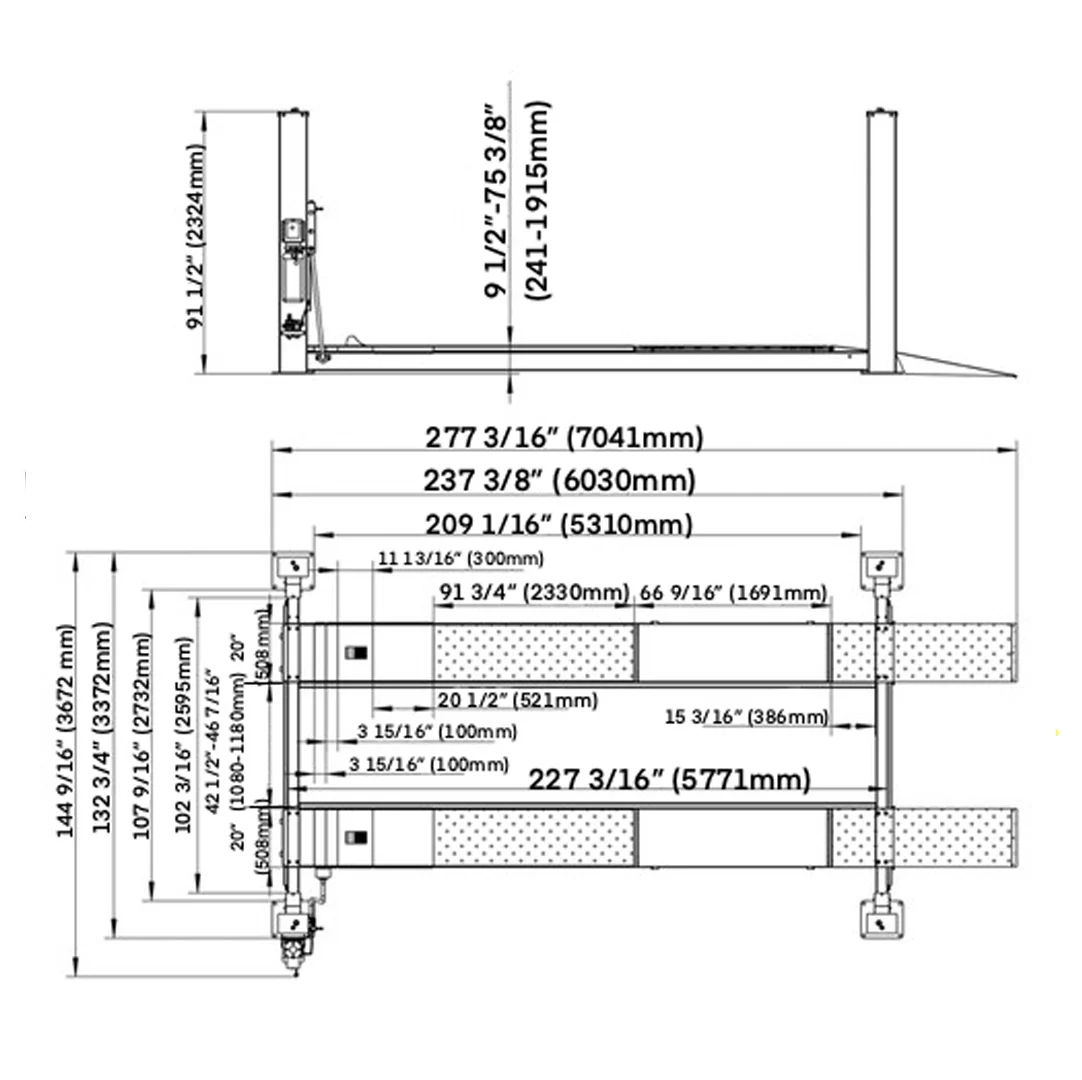

SPECIFICATIONS
Model SAE-414A Capacity 14,000 lbs Minimum Lifting Height 9 1/2” (241 mm)
Maximum Lifting Height
75 3/8” (1915 mm) Lifting Time
~50 sec
Clearance Height
65 7/8” (1674 mm)
Overall Height
91 1/2” (3672 mm)
Overall Width
144 9/16” (3672 mm)
Overall Length with ramps
277 3/16” (7040 mm)
Overall Length without ramps
237 3/8” (6030 mm)
Width Columns 107 9/16" (2732 mm) Drive Thru 82 1/2" - 86 7/16" (2096mm - 2196mm) Total Runway Width
179 3/4" (2025 mm)
Runway Width 20” (508 mm)
Runway Length 277 3/16” (5770 mm)
Width Between Runways 42 1/2” - 46 7/16" (1080mm - 1180mm) Motor 4 HP, 220V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Weight 3097 lbs Dimensions 236"L x 23"W x 36"H -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
